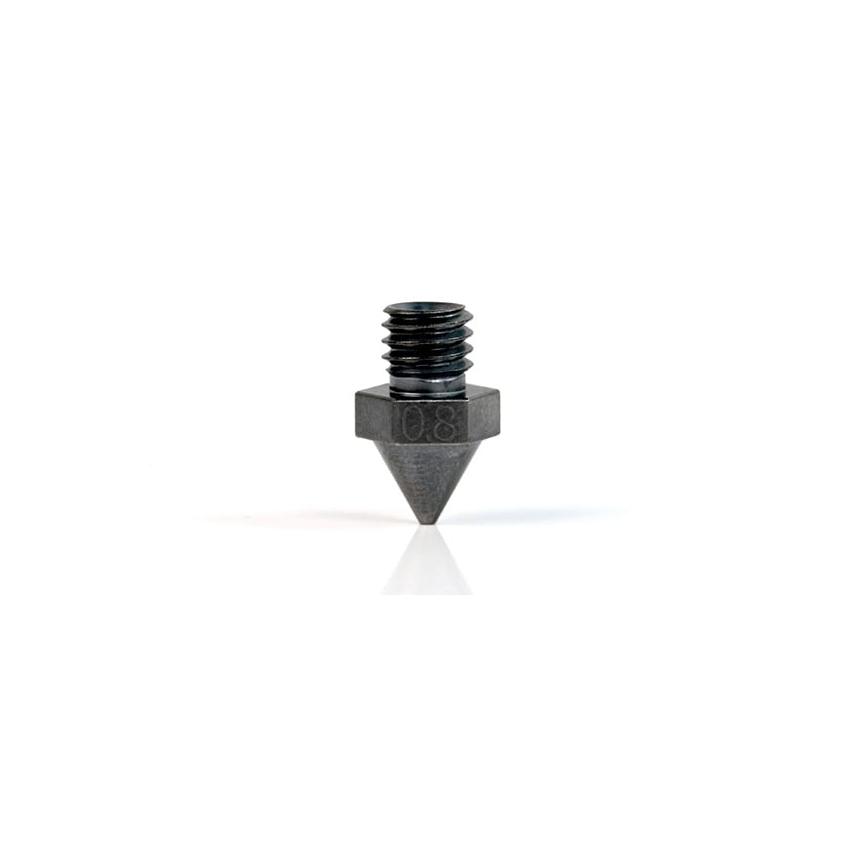

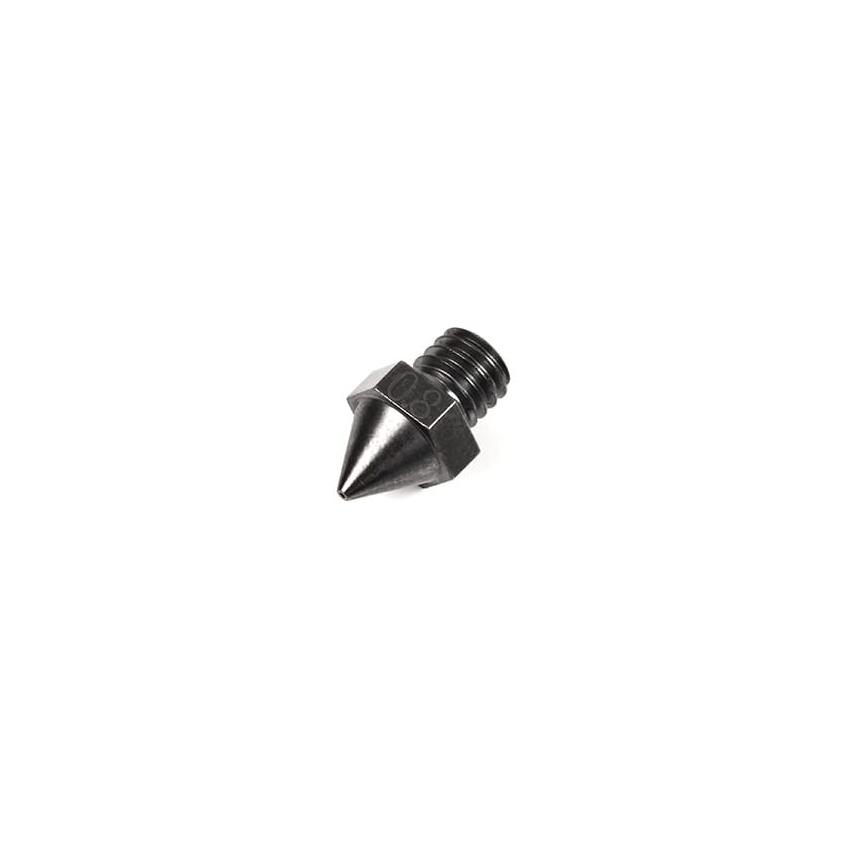

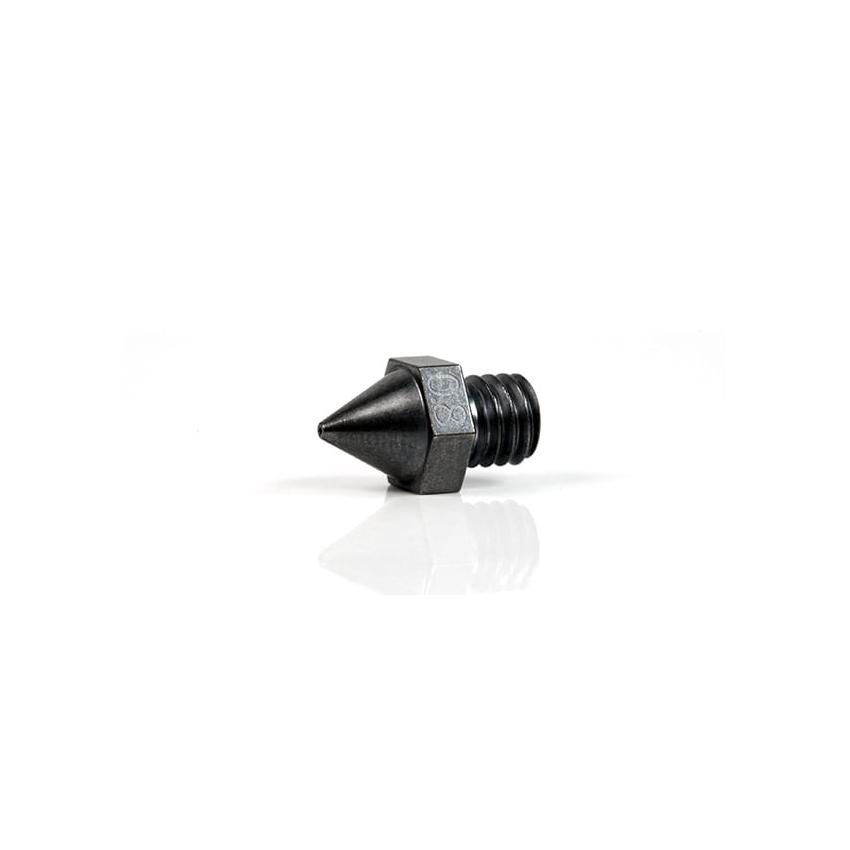

Raise3D Steel Nozzle with WS2 Coating 0.8 mm

£47.99 exc VAT £57.59 inc VAT

For Raise3D Pro2 series and E2 3D Printers.

Product Highlights:

  • Low friction coefficient with WS2 coating for low material accumulation
  • Good lubrication and anti-abrasive performance under high temperature (max. 450 ℃)
  • Optimized flow behaviour for composite filament

Material Specifications:

  • Mohs Hardness: 7.8
  • printing temp (in theory): 450 °C
  • Coefficient of heat conductivity: 26 W/m.k
  • CTE: 12 (μm/m)/ °C

WS2 coated nozzle is designed for composite filaments with abrasive additives and fillers, such as carbon fibre, ceramic, metal, etc. It is very suitable for fibre reinforced filament with optimized melt flow and durability. By printing with unfilled filament, we recommend a normal brass nozzle.

In Stock

SKU: RAINOZSTE08

Description

For Pro2 Series:

Here is the instruction to take out and install the hot ends. Click here.

Here is the instruction to swap the nozzle. Click here.

For E2:

Here is the instruction to replace the hot end assembly. Click here.

Here is the instruction to swap the nozzle. Click here.

Additional information

Manufacturer

RAISE3D

Material

Steel
