Roland TrueVis VG2-540 Print & Cut

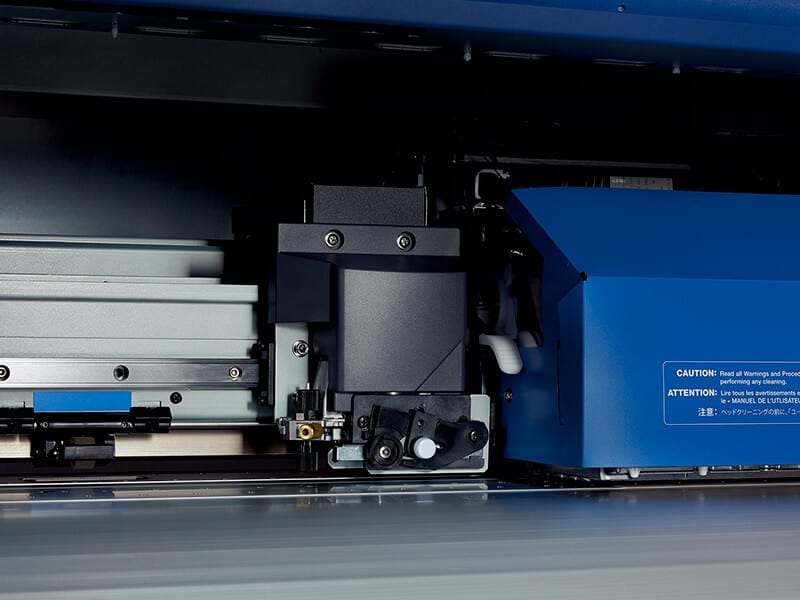

Roland VG2 540 Carriage Unit

DISCONTINUED

The Roland TruVIS VG2 Series printer has than 40 exciting enhancements from the previous award-winning VG series, TrueVIS VG2 printer/cutters are engineered to meet, then exceed the quality and production needs of today’s most demanding print professionals with prints that can be finished in as little as 6 hours*.

Featuring new TR2 ink with Orange and new colour management presets for superior colour reproduction, the VG2 offers industry-leading print and cut accuracy with smart new automated pinch rollers. Plus, prints are certified for quality and reliability with 3MTM and AveryTM product warranty available. Exceed your customers’ expectations. Beat your competition. Trust your instincts – choose TrueVIS VG2.

THIS MODEL IS NO LONGER AVAILABLE, PLEASE SEE THE NEW VG3-540

SKU: ROL-VG2-540

Description

Add More Detail, Colour and Excitement to Your Applications With the Roland VG2-540

With the TrueVIS VG2-540, brilliant yet natural colour, increased Print & Cut accuracy and improved machine efficiency combine to bring your graphics to the next level. Deliver dynamic decals and labels, brilliant banners, striking signs. vibrant vehicle wraps – and so much more.

Backlits

Roland VG2 540 Backlit Grphics

The Roland VG2-540 is compatible with specialty materials to create eye-catching backlit displays full of brilliant light and colour which stand out from other signs and promotions.

Vehicle Wraps & Graphics

Roland VG2 540 Vehicle Graphics

With excellent stretch and 6-hour finishing capabilities*, the VG2 and TR2 ink delivers vehicle wraps and graphics with outstanding colour and long-lasting results. TR2 inks are also covered by 3M

Window & Wall Graphics

Roland VG2 540 Wall & Window Graphics

Add artistic finishes to residential, office and retail windows, walls and floors with the output quality and versatility of the VG2. Accurately reproduce logos and corporate branding with advanced new colour options.

Die-Cut Labels & Decals

Roland VG2 540 Die Cut Labels Example

Print and cut thousands of labels and decals in one print job with non-skew precision, speed and ease.

Heat Transfer & Apparel

Roland VG2 540 Heat Transfer Example

Print and cut thousands of labels and decals in one print job with non-skew precision, speed and ease.

Banners, Signs and Posters

Roland VG2 540 Banner & Poster Printing

3M and Avery certified TR2 inks perform brilliantly with the Roland VG2 540 on coated and uncoated media, including PVC for banners and poster paper. Printed graphics, including those with Orange ink, are durable for up to 3 years outdoors without lamination***.

Pioneering Print Quality – The Benefits of Orange and TR2 Ink

Orange Colour Options for Incredible Colour Accuracy

Roland VG2 540 Orange Colour Options with Accuracy

New orange process colour options offer you the ability to hit specific key colours with around 130 new spot colour references available in the new Orange Color System Library.

Expand Your Gamut With Multiprocess Color Functions

Roland VG2 540 Colour Gamut Example

For even richer prints and super-accurate reproduction of brand colours, the Multiprocess Color Function allows Orange ink to be used in all file types as a process colour or spot if specific colour matching is required.

Orange Colour Options for Incredible Colour Accuracy

Roland VG2 540 Orange Colour Options with Accuracy

True Rich Color colour management preset combines vibrant colour with neutral grays, smooth gradations, and natural skin tones to produce colour quality of incomparable realism and unprecedented colour complexity.

Amazingly Fast Turnaround To Give You The Competitive Edge

Print then laminate in as little as 6 hours- with the Roland TrueVIS VG2 540 you can print, laminate and apply the same day, with the reassurance of quality output and reliable installation.*

Roland VG2 Print Production Diagram

New Accuracy Features

Roland VG2 540

• New crop mark options for cutting laminated prints or long production runs of print and cut graphics provide perfect cutting performance when used in combination with the new optimised side pinch roller pressure functionality. • Newly designed middle pinch rollers raise automatically prior to starting the cutting process, allowing the media to be cut without the rollers travelling over the printed area. • Print & Cut or Cut & Print – to increase media compatibility, the VG2 and VersaWorks 6 offer a new cut and print function to enable delicate media and intricate designs to be cut before ink is applied. • A new take-up unit supports two modes according to the type of media chosen, securing take-up stability for smooth post processes.

Powerful Productivity

Roland vg2 Powerful productivity

The fine-tuned design, job sequences, software functions, operation panel and maintenance procedures offer an unmatched user experience. Plus, bundled VersaWorks 6 RIP software includes the latest Harlequin® RIP dual core engine with PDF 2.0 and native 64-bit processing and new, easy-to-use capabilities that make it Roland’s most powerful RIP software ever.

Video

Roland TrueVIS VG2 Printer Video

Fast Facts

  • A New Generation of TrueVIS Eco-Solvent Ink
  • True Rich Color
  • Vibrant colour can be combined with neutral grays, smooth gradations and natural skin tones to create stunning graphics.
  • Automatic Pinch Rollers raise automatically before cutting starts allowing the media to be cut without travelling over the rollers.
  • New Media clamps do not have to be removed before the cutting process takes place.
  • Flexfire Printheads deliver maximum quality even at higher speeds.
  • Create PerfCut borders, cut and die-cut all in one operation in the RIP.
  • Improved workflow

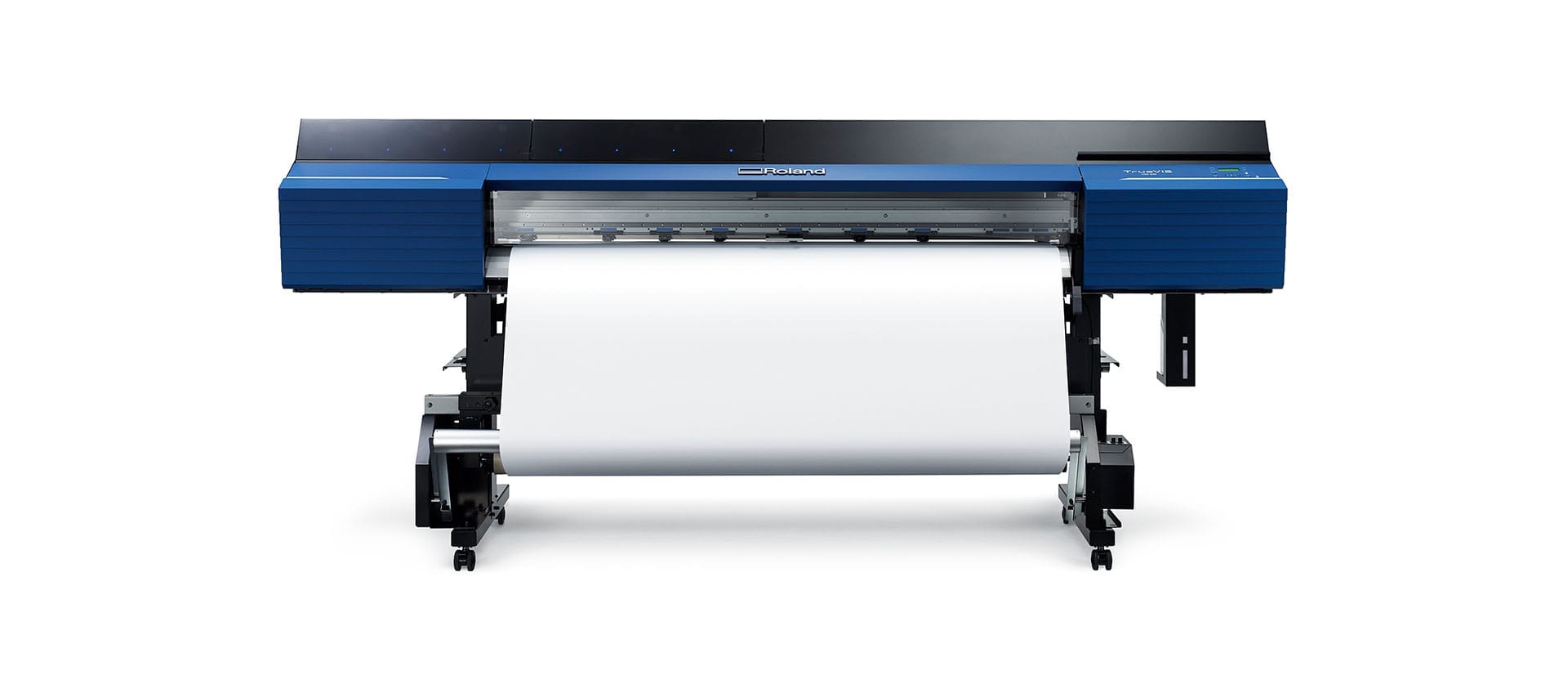

  • New Media Take-up System
  • Nozzle mask function allows other nozzles to take up the slack when others are not working allowing you to continue printing that all important job.
  • Roland DG Mobile Panel gives you direct access to all settings on the printer via your smartphone or tablet.
  • RolandCare Included offering you first-rate aftercare for you and your printer.

Product Specification

Model VG2-640
 VG2-540
Printing method Piezoelectric inkjet
Media
 Width
 315 to 1625 mm (12.4 to 64 in.) 275 to 1371 mm (10.8 to 54 in.)
Thickness
 Max. 1.0 mm (39 mil) with liner, for printing
Max. 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting
Roll outer diameter Max. 210 mm (8.3 in.)
Roll weight Max. 40 kg (88 lb.) Max. 30 kg (66 lb.)
Core diameter*1 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing/cutting width*2 Max. 1600 mm (63 in.) Max. 1346 mm (53 in.)
Ink Type TrueVIS INK TR2 500 cc pouch (White 250 cc)
Colours Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and White)
Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black and Orange)
Four colours (Cyan, Magenta, Yellow and Black)
Printing resolution (dots per inch) Max. 1200 dpi
Cutting speed 10 to 300 mm/s (0.4 to 11.8 in/s)
Blade force*3 30 to 500 gf
Blade Type Roland CAMM-1 series blade
Offset 0.000 to 1.500 mm (0.0 to 59.1 mil)
Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
Distance accuracy (when printing)*4*5 Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater
Distance accuracy (when cutting)*4 Error of less than ±0.4% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] – [CALIBRATION] has been made): Error of less than ±0.2% of distance travelled or ±0.1 mm (±3.9 mil), whichever is greater
Repeatability (when cutting)*4*6 ±0.1 mm (±3.9 mil) or less
Alignment accuracy for printing and cutting *4 ±0.5 mm (±19.7 mil) or less
Alignment accuracy for printing and cutting when reloading media*4*8 Error of less than ±0.5% of distance travelled, or ±3 mm (±0.2 in.), whichever is greater
Media heating system*9 Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz
Power consumption During operation
 Approx. 1090 W
Sleep mode Approx. 40 W
Acoustic noise level During operation 63 dB (A) or less
During standby 53 dB (A) or less
Dimensions (with stand) 2945 (W) × 730 (D) × 1310 (H) mm
(116 [W] × 28.8 [D] × 51.6 [H] in.)		 2685 (W) × 730 (D) × 1310 (H) mm
(105.8 [W] × 28.8 [D] × 51.6 [H] in.)
Weight (with stand) 204 kg (451.9 lb.) 188 kg (421 lb.)
Environment Power on Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80%RH (no condensation)
Power off Temperature: 5 to 40°C (41 to 104°F), humidity: 20 to 80%RH (no condensation)
Included items VersaWorks 6 RIP Software, exclusive stands, power cable, media clamps, media holders, replacement blade for separating knife, manuals, etc.
