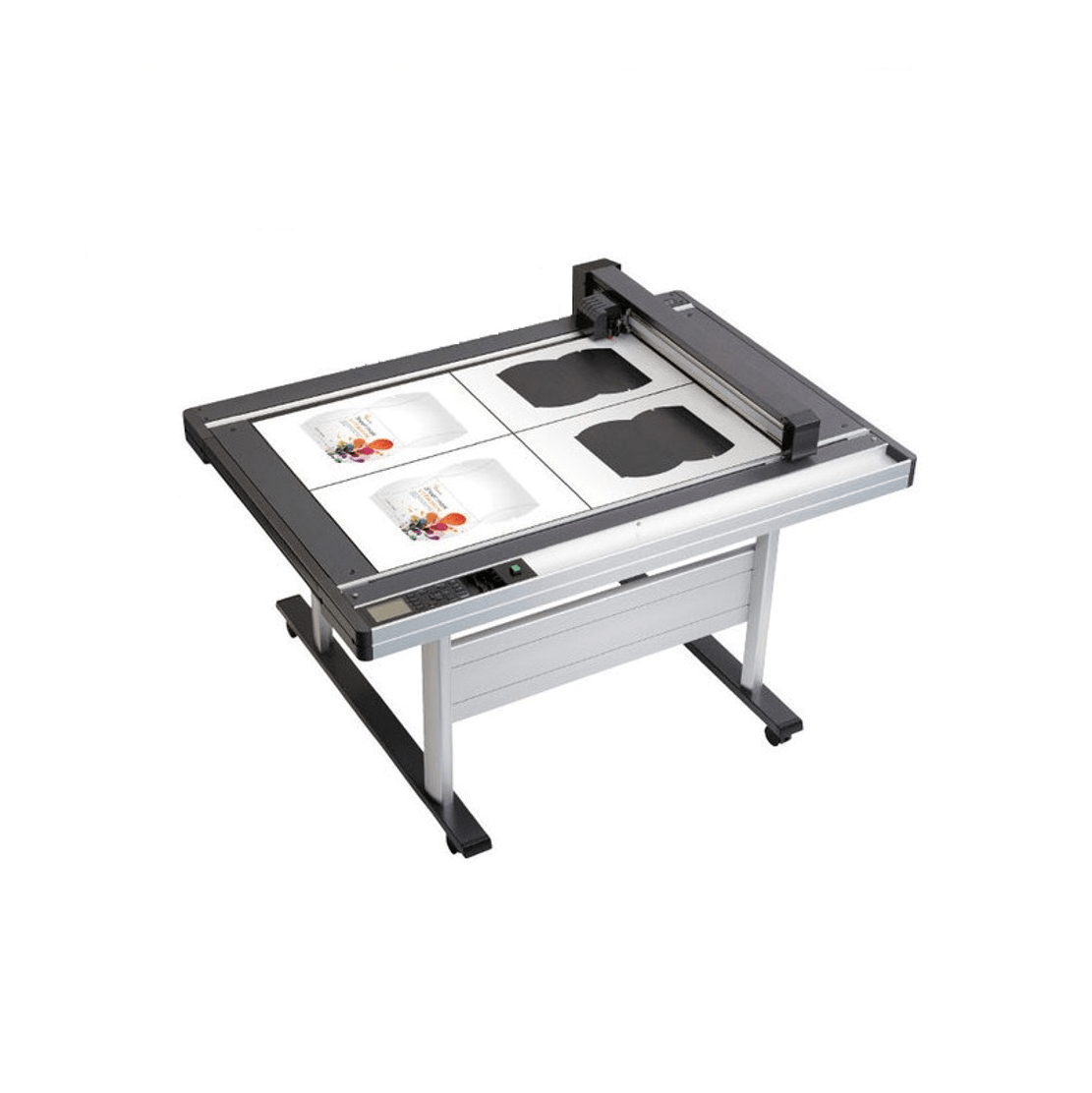

Graphtec FCX4000 Series – Compact Flatbed Cutting Plotter

The Graphtec FCX4000 Series flatbed cutting plotter is built for sign-makers, packaging designers and print-on-demand services that need a reliable, affordable desktop cutting solution. The FCX4000 uses a silent electrostatic hold-down system to secure sheet media flat on the table, enabling precise contour cutting, creasing and scoring without requiring a heavy-duty industrial setup.

Available in two table widths — 50 cm and 60 cm — the Graphtec FCX4000 offers the flexibility to process everything from vinyl stickers and self-adhesive films to cardboard, foam sheet and corrugated board. Its intuitive 3.7-inch LCD control panel and offline USB/barcode operation mean jobs can be run without a connected computer.

Key Features of the Graphtec FCX4000

• Silent Electrostatic Hold-Down – Securely grips sheet media without mechanical clamps for near-silent operation.
• Max Cutting Speed: 750 mm/s – High throughput for short to medium production runs.
• Max Cutting Force: 600 gf – Handles a wide range of substrates including card, foam and corrugated board.
• Dual Tool Heads – Cut and crease in a single pass with two mountable tool positions.
• ARMS 6.0 Registration Mark Sensing – Automatic contour-cut alignment for print-and-cut workflows.
• Offline USB & Barcode Operation – Load cut files from a flash drive; barcode recall reduces operator error.
• 3.7-inch LCD Control Panel – Simple, intuitive on-machine operation.
• Networking Ready – Ethernet and RS-232C connectivity alongside USB 2.0.

Graphtec FCX4000 Specifications

Graphtec FCX4000 Model Options

• FCX4000-50ES – 50 cm table; effective cutting area 660 × 488 mm; mountable media width 536 mm; dimensions 42.87 × 35.31 × 8.03 in; weight 29 kg.
• FCX4000-60ES – 60 cm table; effective cutting area 660 × 976 mm; mountable media width 708 mm; dimensions 55.31 × 42.08 × 8.03 in; weight 38 kg.

Supported Substrates

The Graphtec FCX4000 processes a wide variety of media including:

• Self-adhesive vinyl (up to 0.25 mm)
• Paper and board (up to 1 mm)
• Compressed foam sheet (up to 0.8 mm)
• Sandblast rubber (up to 1 mm)
• Cardboard and corrugated board (up to 1.5 mm)
• Oilboard and rubber sheet

Main Applications

The Graphtec FCX4000 is used by sign-makers, packaging designers and print-on-demand services for:

• Kiss-cutting and die-cutting stickers & labels
• Creasing and scoring cardboard packaging prototypes
• POP display production
• Sandblast mask cutting
• Contour cutting printed vinyl graphics
• Perforation cutting and window graphics

What Is Included with the Graphtec FCX4000

Each FCX4000 ships with a clear protection sheet, power cable, USB cable, DVD-ROM and user manual. The accessory bundle includes a cutting blade holder, CB15U blade, loupe for checking blade length, fibre-tipped pen holder, black fibre-tipped pen and height adjustment tool.

Supplied Software

The Graphtec FCX4000 is compatible with Graphtec Pro Studio (Windows) and Graphtec Studio for Mac, plus the Cutting Master 4 plug-in for Adobe Illustrator and CorelDRAW — enabling a seamless workflow from popular design applications to the cutter.

Frequently Asked Questions – Graphtec FCX4000

What is the difference between the Graphtec FCX4000 and FCX2000?

The FCX4000 is the compact, affordable model suited to smaller print-on-demand environments, offering table sizes up to 60 cm and a maximum cutting pressure of 600 gf. The FCX2000 is the larger, more capable machine with table widths up to 180 cm, dual tool heads delivering up to 1,000 gf, and support for heavier rigid substrates in more demanding production settings.

Does the FCX4000 need a computer to operate?

No. The Graphtec FCX4000 supports fully offline operation — save cut files to a USB flash drive or use the built-in barcode reader to recall stored jobs directly from the 3.7-inch LCD control panel.

What media types can the FCX4000 cut?

The FCX4000 cuts self-adhesive vinyl, paper, card, oilboard, compressed foam, sandblast rubber and corrugated cardboard up to 1.5 mm thick. The specific maximum thickness depends on the material type and tool fitted.

Can the FCX4000 handle print-and-cut jobs?

Yes. The ARMS 6.0 Advanced Registration Mark Sensing system automatically detects printed registration marks and compensates for any distortion, ensuring accurate alignment between the printed image and the cut path every time.

What software works with the Graphtec FCX4000?

The FCX4000 is compatible with Graphtec Pro Studio (Windows), Graphtec Studio for Mac, and the Cutting Master 4 plug-in for Adobe Illustrator and CorelDRAW.
