Canon imagePROGRAF TX-3200 (36″)
Canon imagePROGRAF TX-3200 (36″)

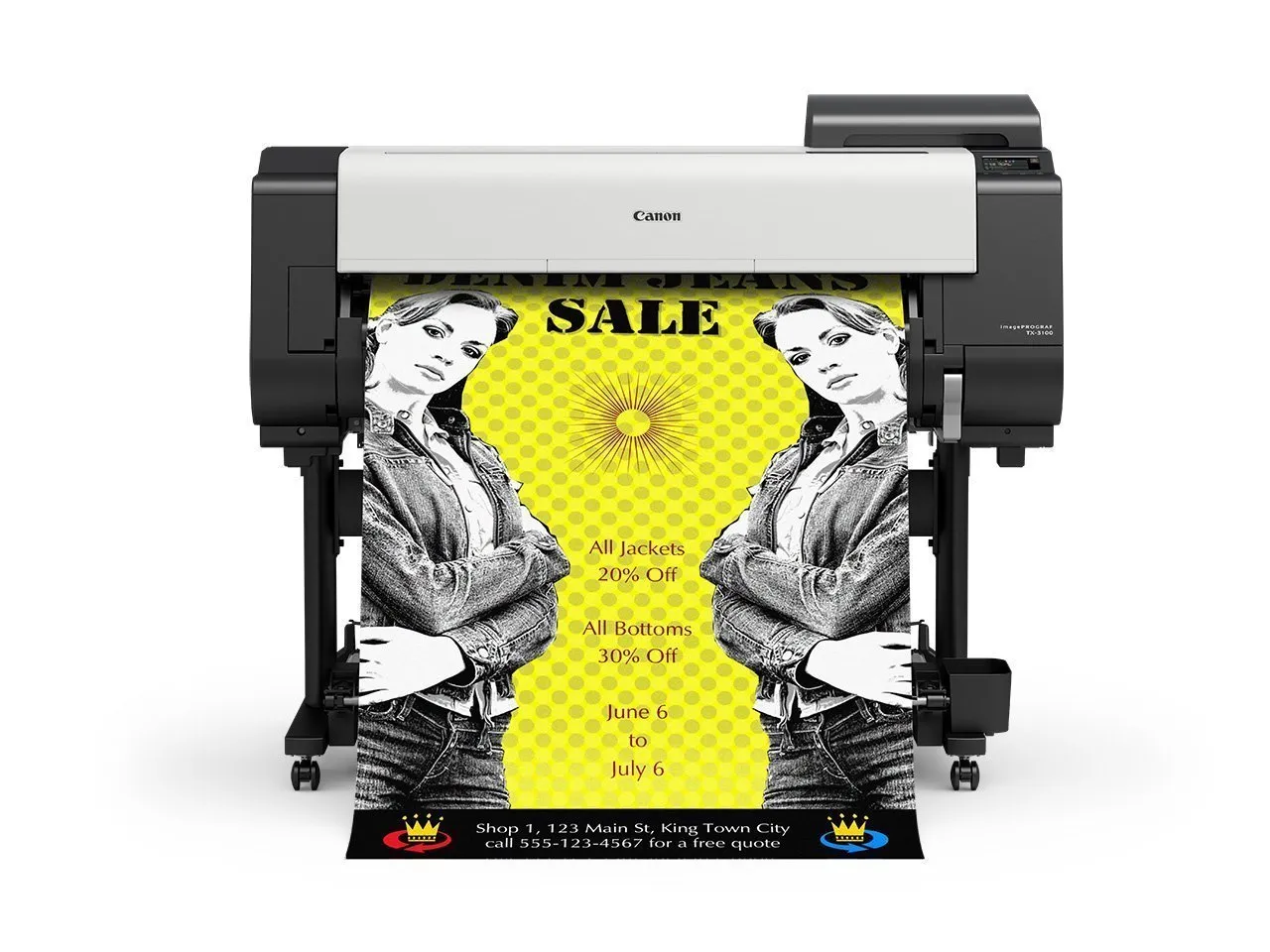

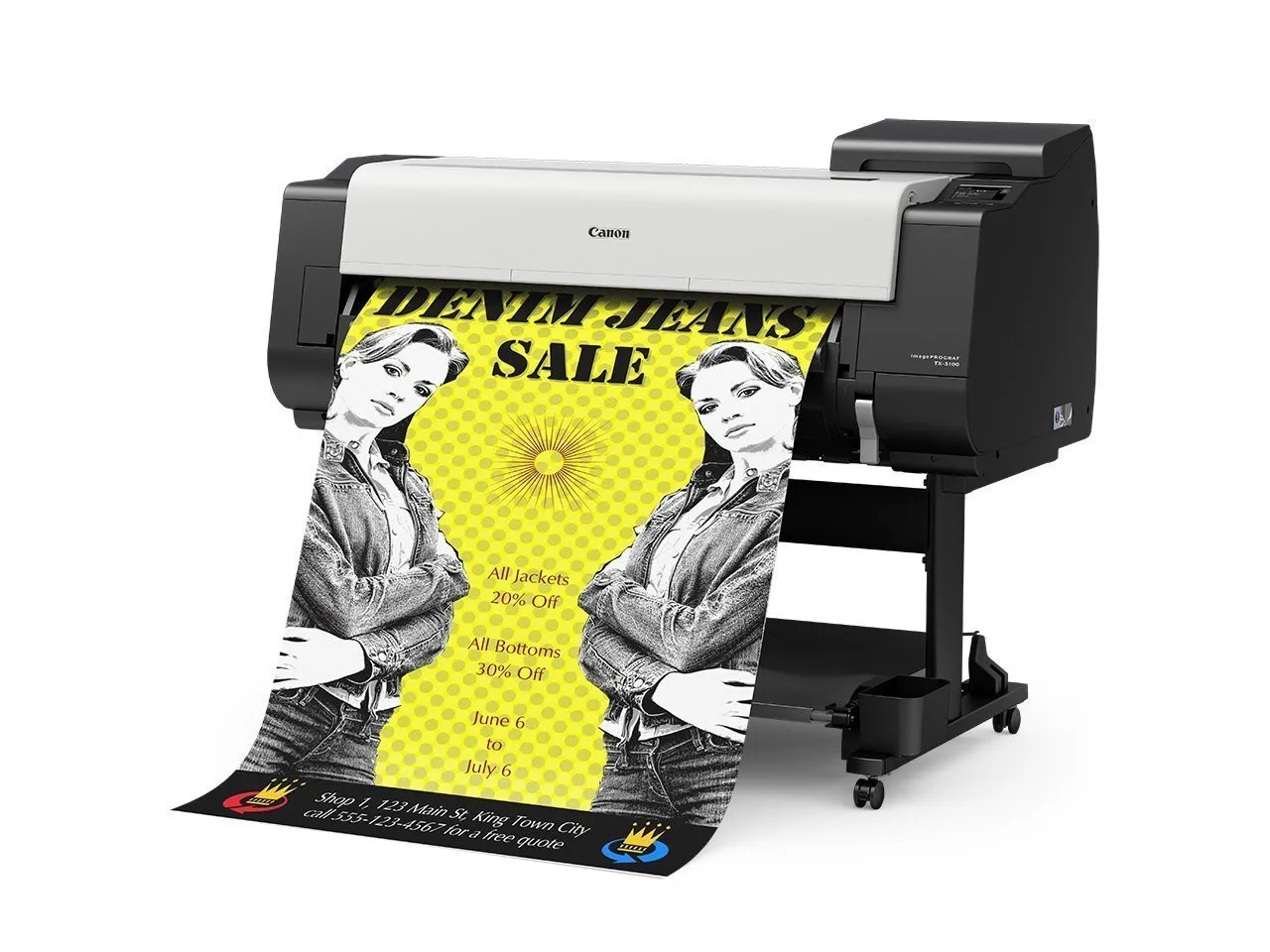

The Canon imagePROGRAF TX-3200 is a 36″ large-format printer for CAD, GIS and posters.
It delivers 2400 × 1200 dpi quality, 3.3 A1 ppm speed, auto media loading and dual-roll productivity in one compact design.
Manufacturer SKU: 6854C010AB
Canon imagePROGRAF TX-3200 – 36" High-Speed CAD & Poster Printer
The Canon imagePROGRAF TX-3200 is a powerful 36-inch, 5-colour pigment printer designed for high-volume
CAD, GIS and poster applications. With crisp 2400 × 1200 dpi output, lightning-fast media handling,
and advanced security features, it delivers professional results with exceptional reliability.
Why Choose It
- High precision with ±0.1% line accuracy.
- Up to 3.3 A1 (D-size) ppm throughput.

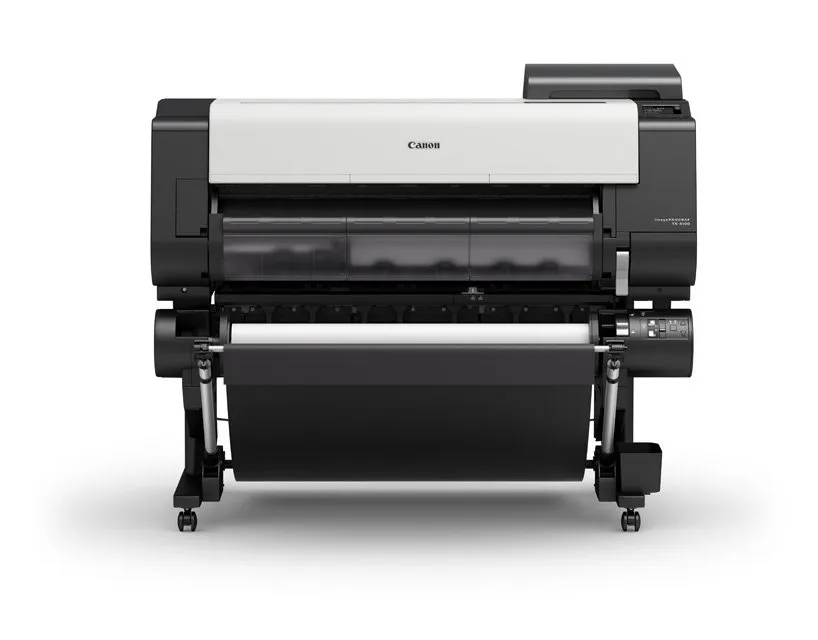

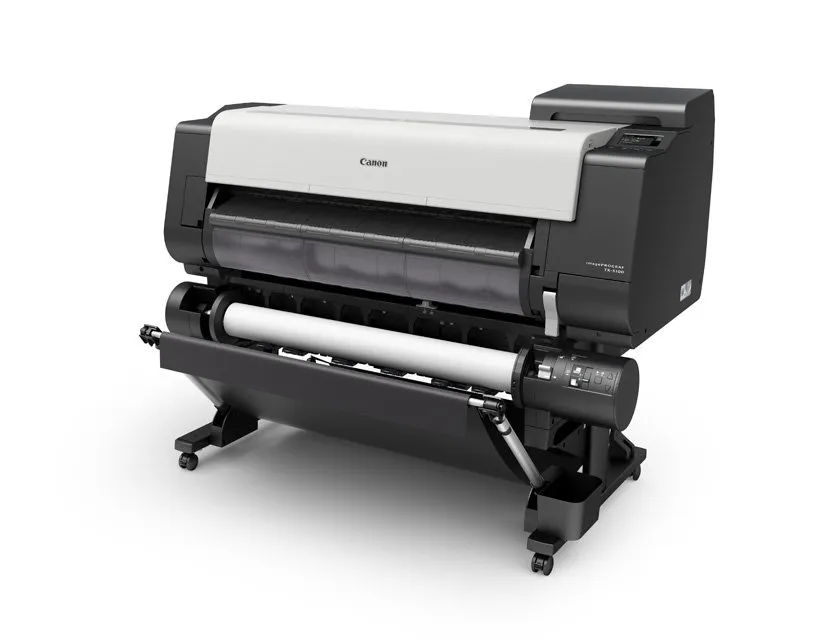

- Auto media loading and dual-roll capability for nonstop printing.
- Hot-swappable ink tanks (160 / 330 / 700 ml) with sub-ink system.
- PF-06 print head with 15,360 nozzles for sharp detail.
- Built-in 500 GB HDD and 128 GB virtual memory for heavy workloads.
- Advanced security: encrypted HDD, SSL/TLS, 802.1x, and secure erase.
Ideal For

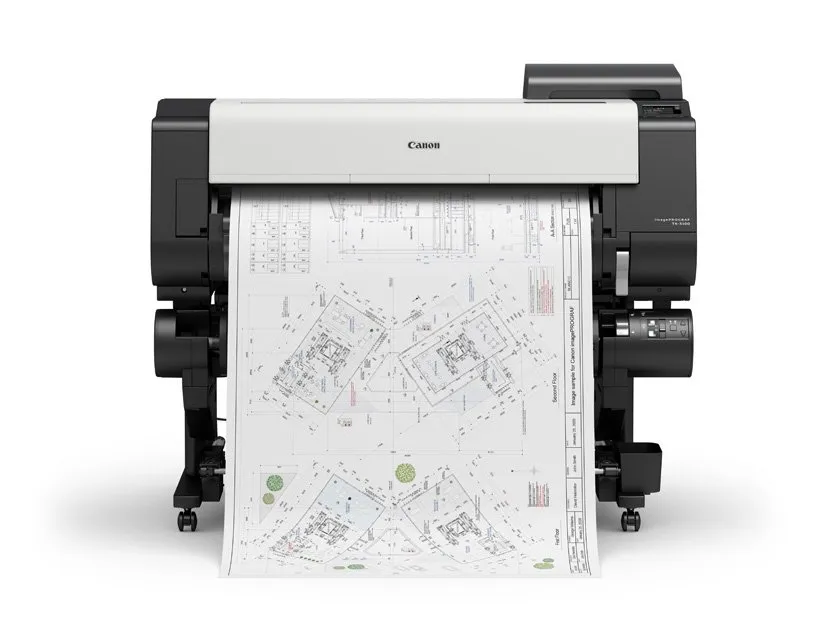

- Precision CAD & AEC drawings
- GIS & mapping output
- Large posters & retail signage
Key Specifications
- Maximum print width: 36″ (917 mm)
- Resolution: 2400 × 1200 dpi
- Line accuracy: ±0.1 %
- Ink system: 5-colour pigment (MBK / BK / C / M / Y)
- Ink tank sizes: 160 / 330 / 700 ml
- Print head: PF-06 with 15,360 nozzles
- Controller: L-COA PRO with 500 GB HDD & 128 GB virtual memory
- Media width: 6" – 36", roll & cut-sheet
- Print speed: up to 3.3 A1 (D-size) pages per minute

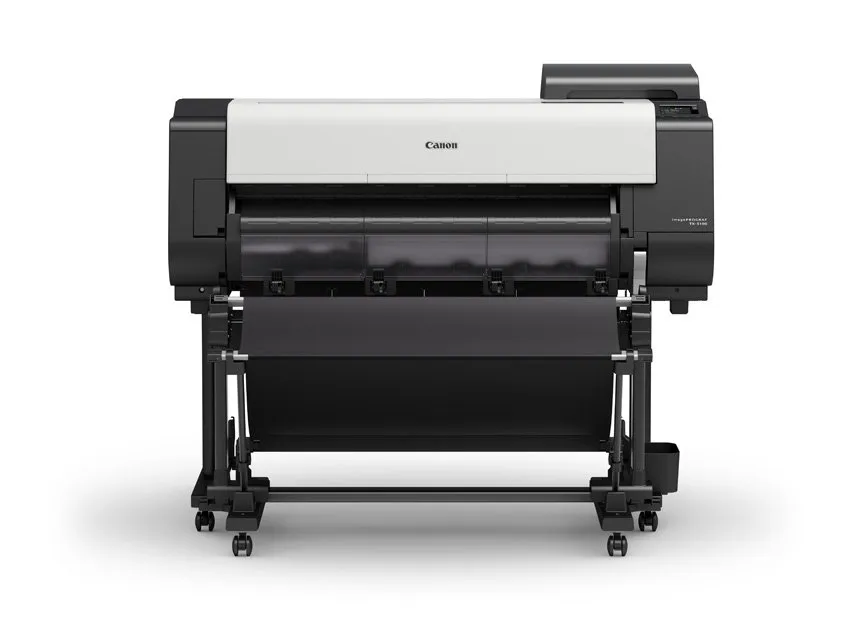

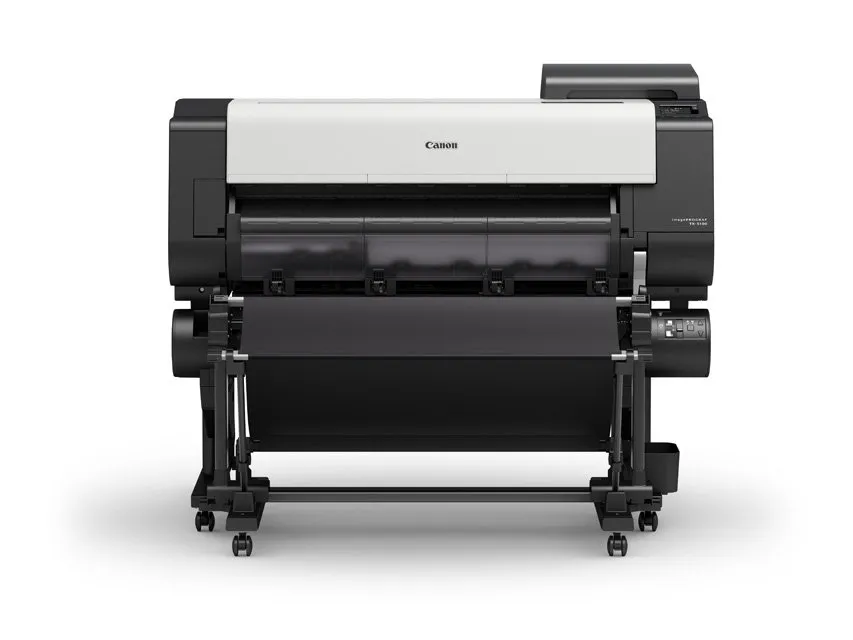

- Options: TX Stacker (100 sheets), Multifunction Roll System (dual roll / take-up)
- Certifications: EPEAT Gold, ENERGY STAR
