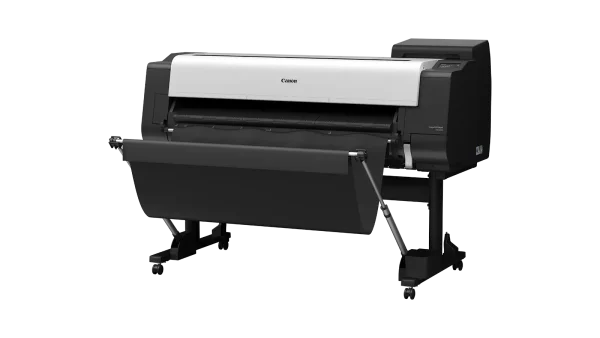

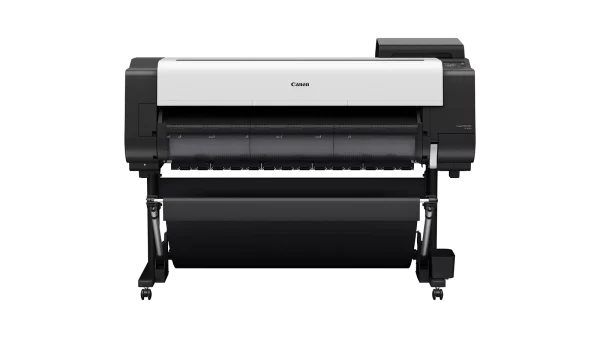

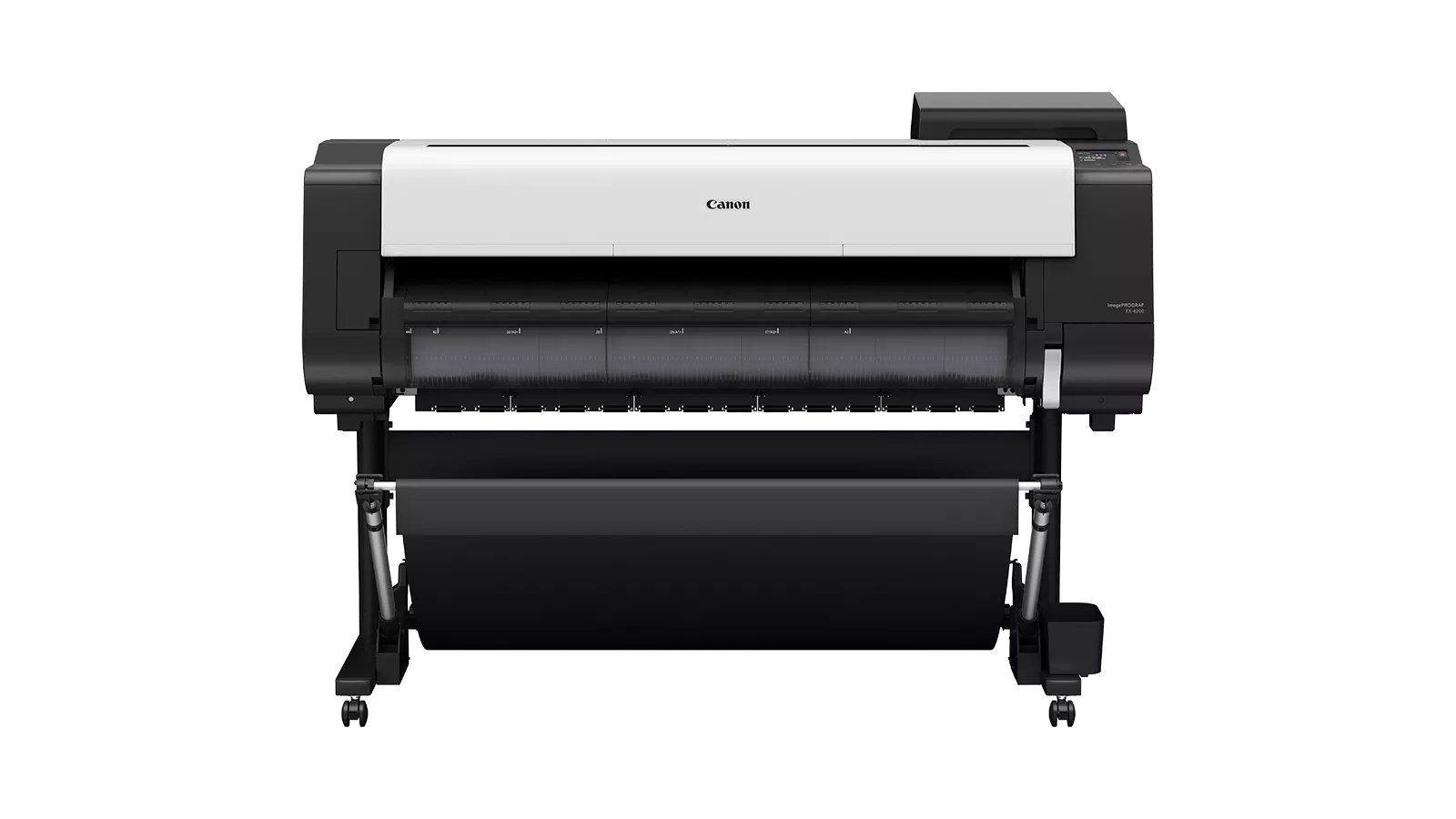

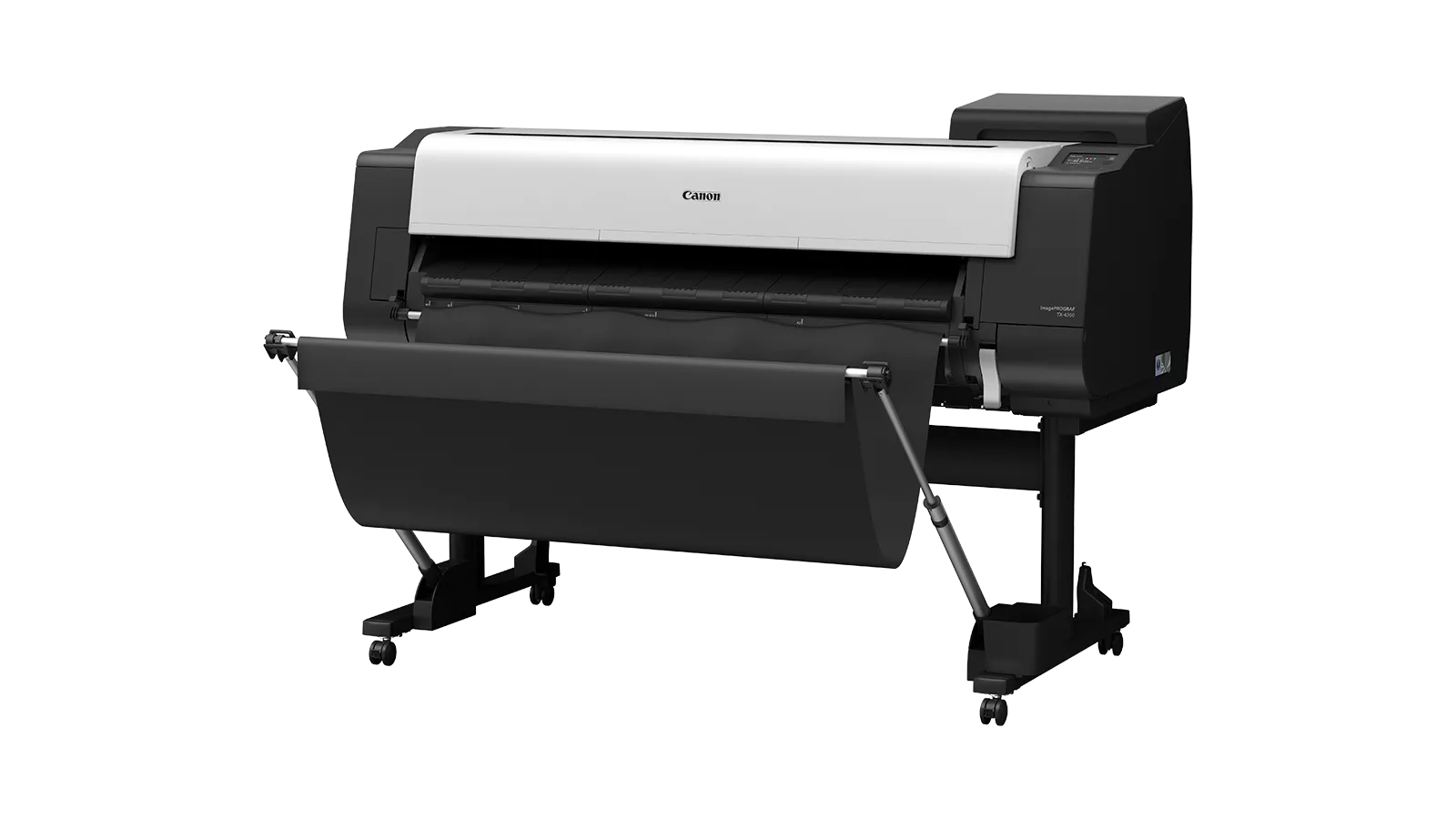

Canon imagePROGRAF TX-4200 (44″)
Canon imagePROGRAF TX-4200 (44″)
The Canon imagePROGRAF TX-4200 is a 44″, 5-colour pigment printer for CAD, GIS and posters.
It delivers 2400×1200 dpi detail, up to 3.3 D-size ppm, smart auto media loading,
and optional TX Stacker or dual-roll RU-42.
Manufacturer SKU: 6855C010AA
Canon imagePROGRAF TX-4200 – 44" Production CAD & Poster Printer
The Canon imagePROGRAF TX-4200 is a 44-inch, 5-colour pigment ink printer built for
high-volume AEC drawings, GIS maps and
vibrant posters. It combines 2400×1200 dpi precision with fast output
(up to 3.3 D-size pages/min) and robust security—ideal for offices, print rooms and PSPs.
Why it stands out
- LUCIA TD 5-colour pigment inks for crisp lines and weather-resistant prints.
- Smart auto media loading and front-loading roll for quick changeovers.
- Choose a TX Stacker (up to ~100 A0/A1 sheets) or multi-position catch basket.
- Built-in 500 GB HDD & 128 GB virtual memory for heavy jobs.
- Connectivity: USB, Gigabit Ethernet & Wi-Fi.
- EPEAT Gold & ENERGY STAR certified.
Perfect for
- CAD/technical drawings with ±0.1% line accuracy.
- GIS maps with fine detail and solid fills.
- Retail posters and signage using PosterArtist templates.
Key specifications
- Max print width: 44"
- Resolution: 2400 × 1200 dpi (FINE print head; 15,360 total nozzles)
- Inks: Pigment MBK/BK/C/M/Y; tanks 160/330/700 ml
- Controller: L-COA PRO; onboard 500 GB HDD
- Media: Roll or cut sheet, 6"–44" wide; borderless on rolls
- Speed (internal test): up to 3.3 D-size pages/min
- Options: RU-42 dual-roll unit; Z36 scanner (MFP)
