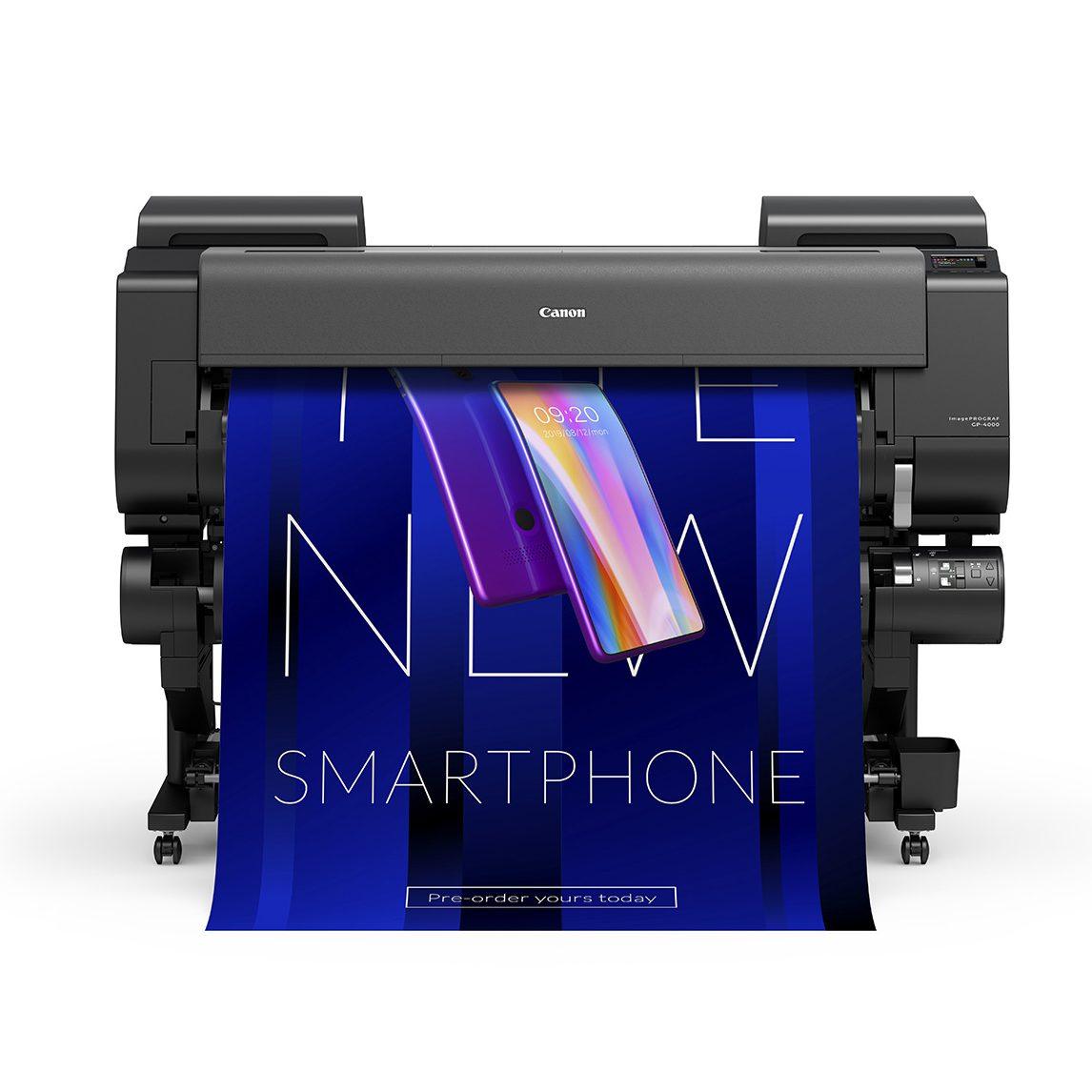

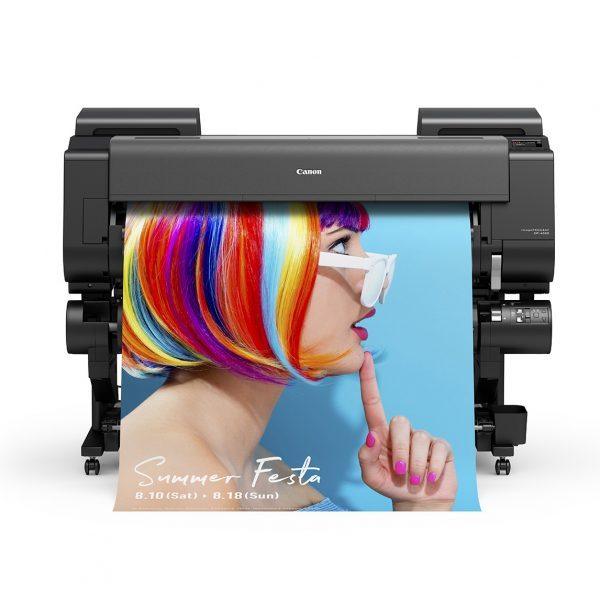

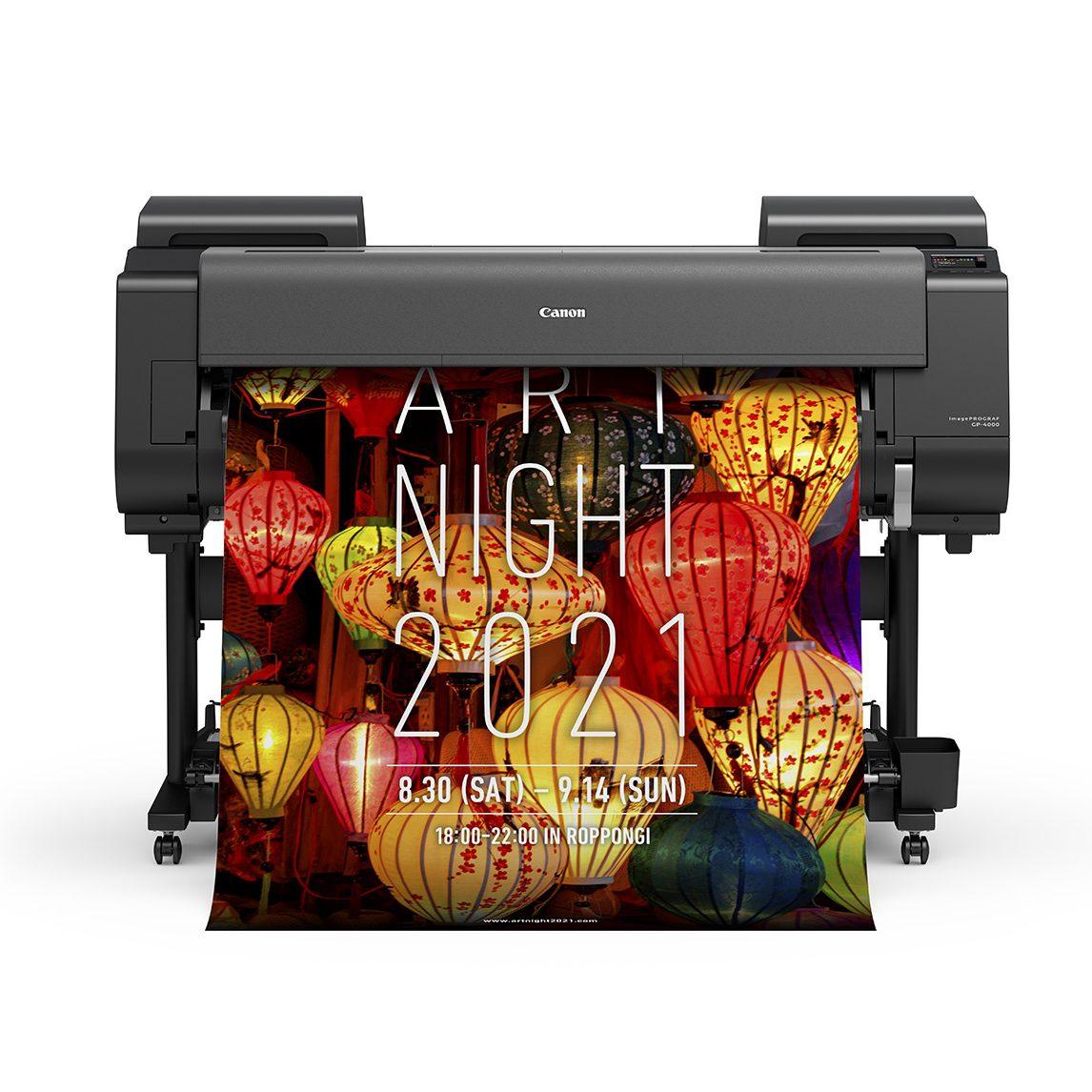

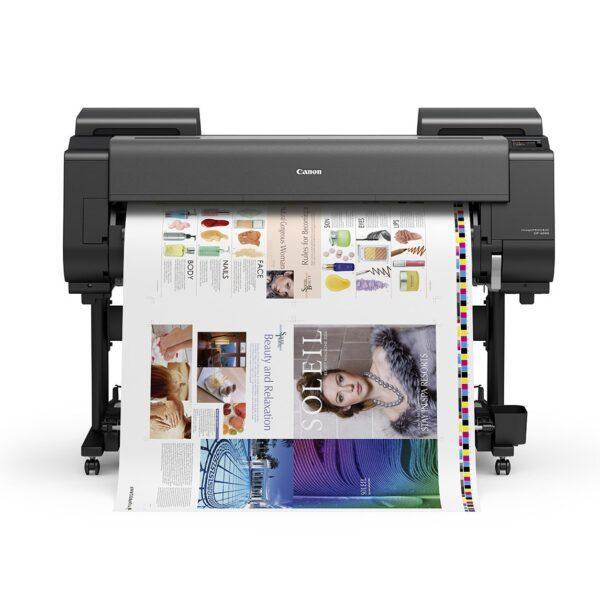

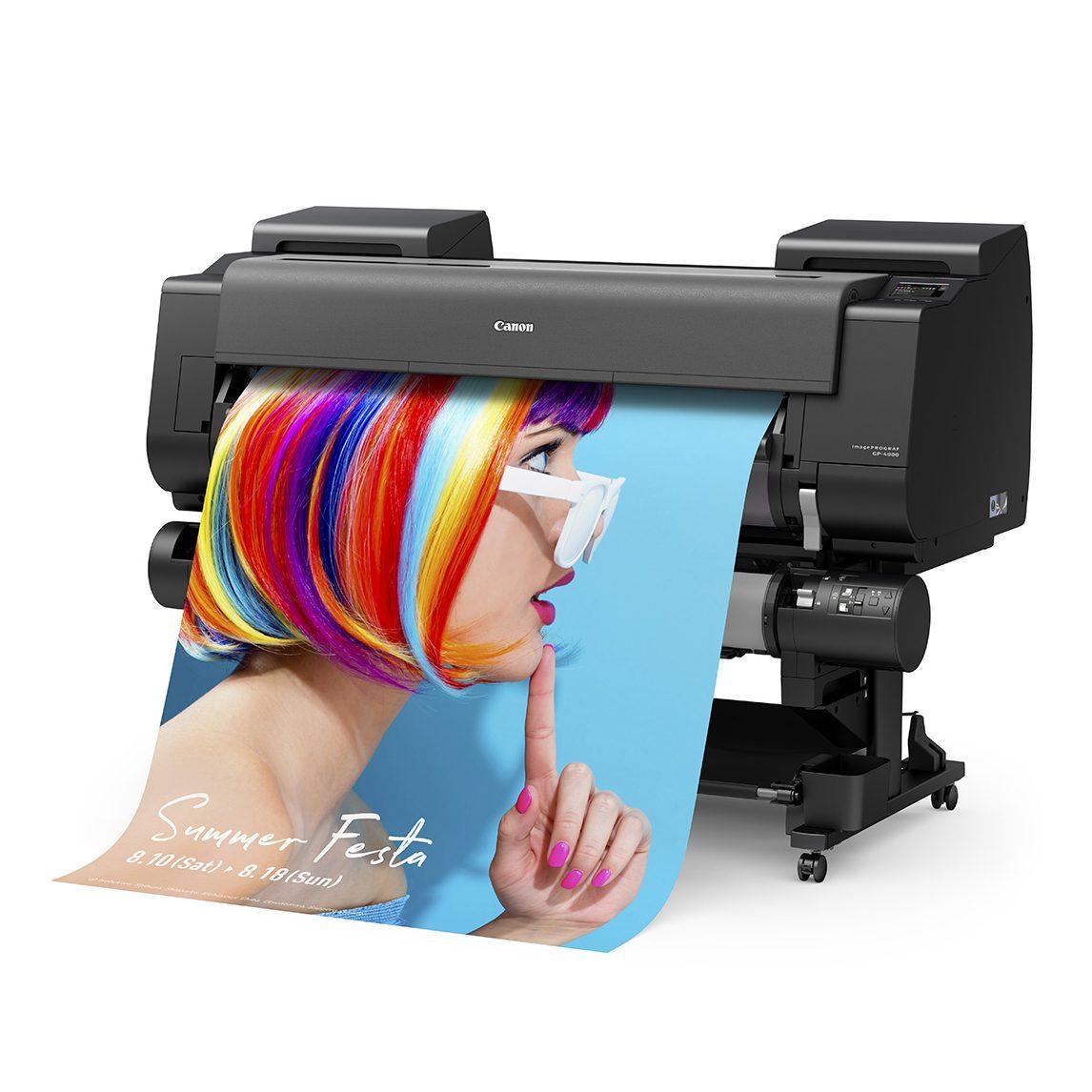

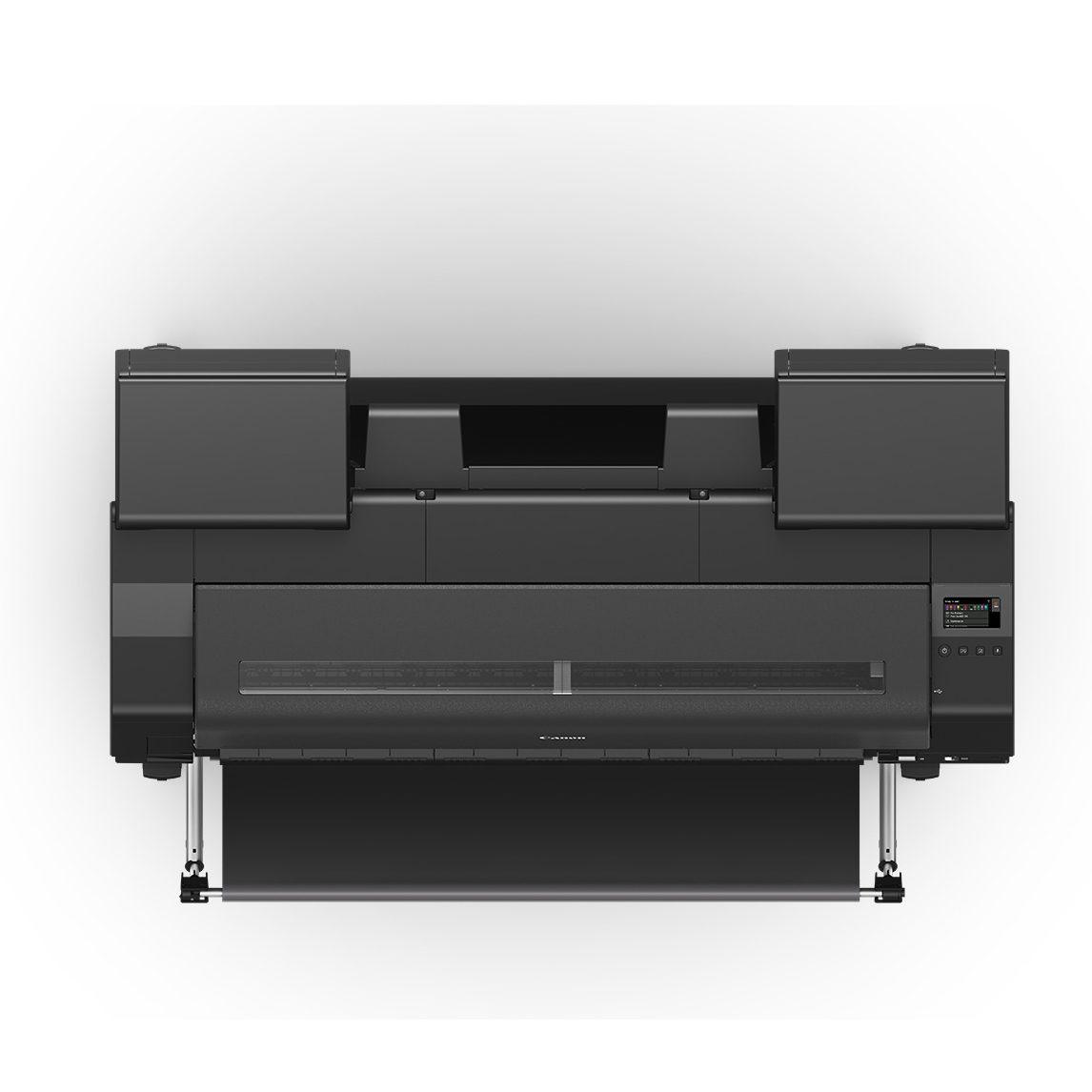

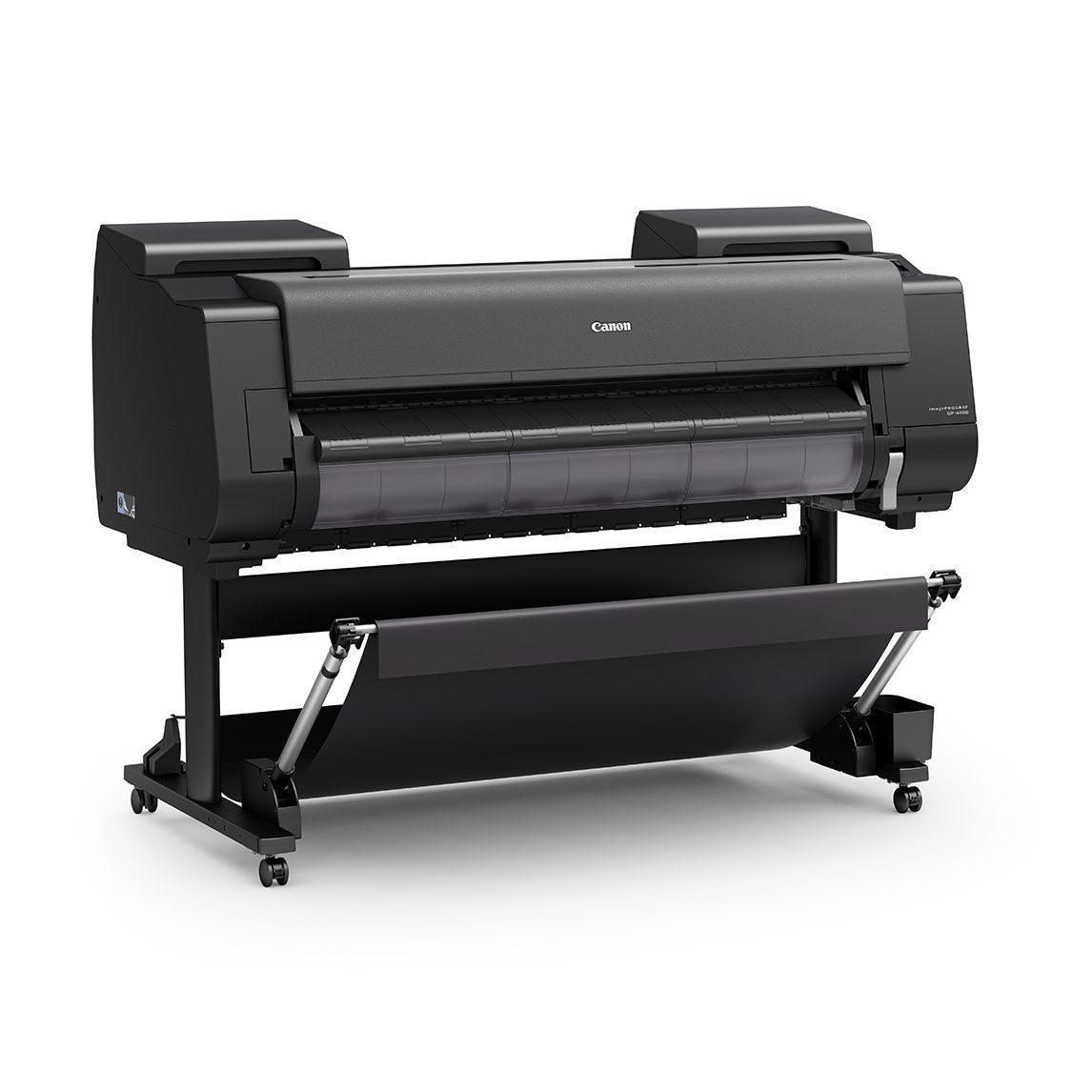

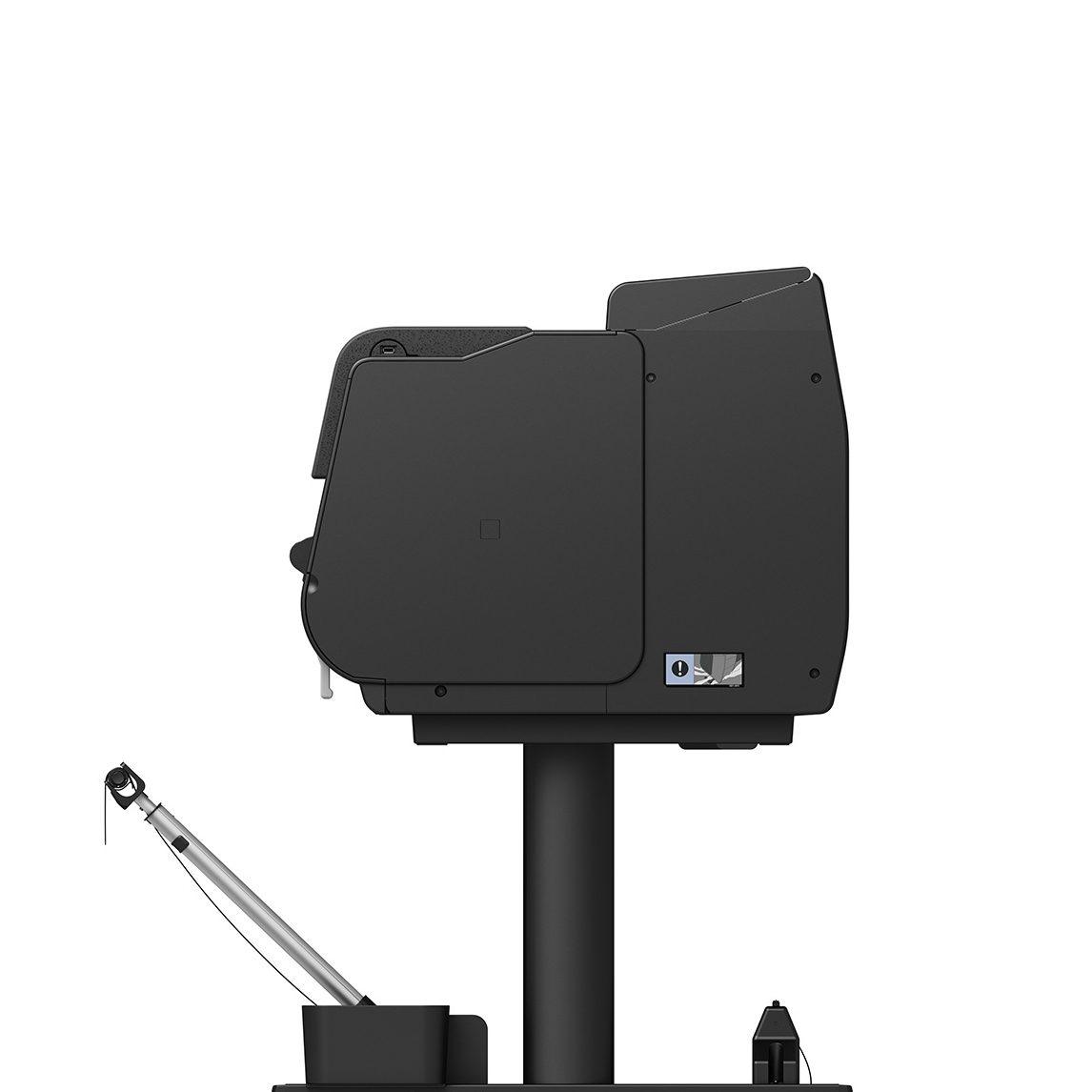

Canon imagePROGRAF GP-4000 (44″)

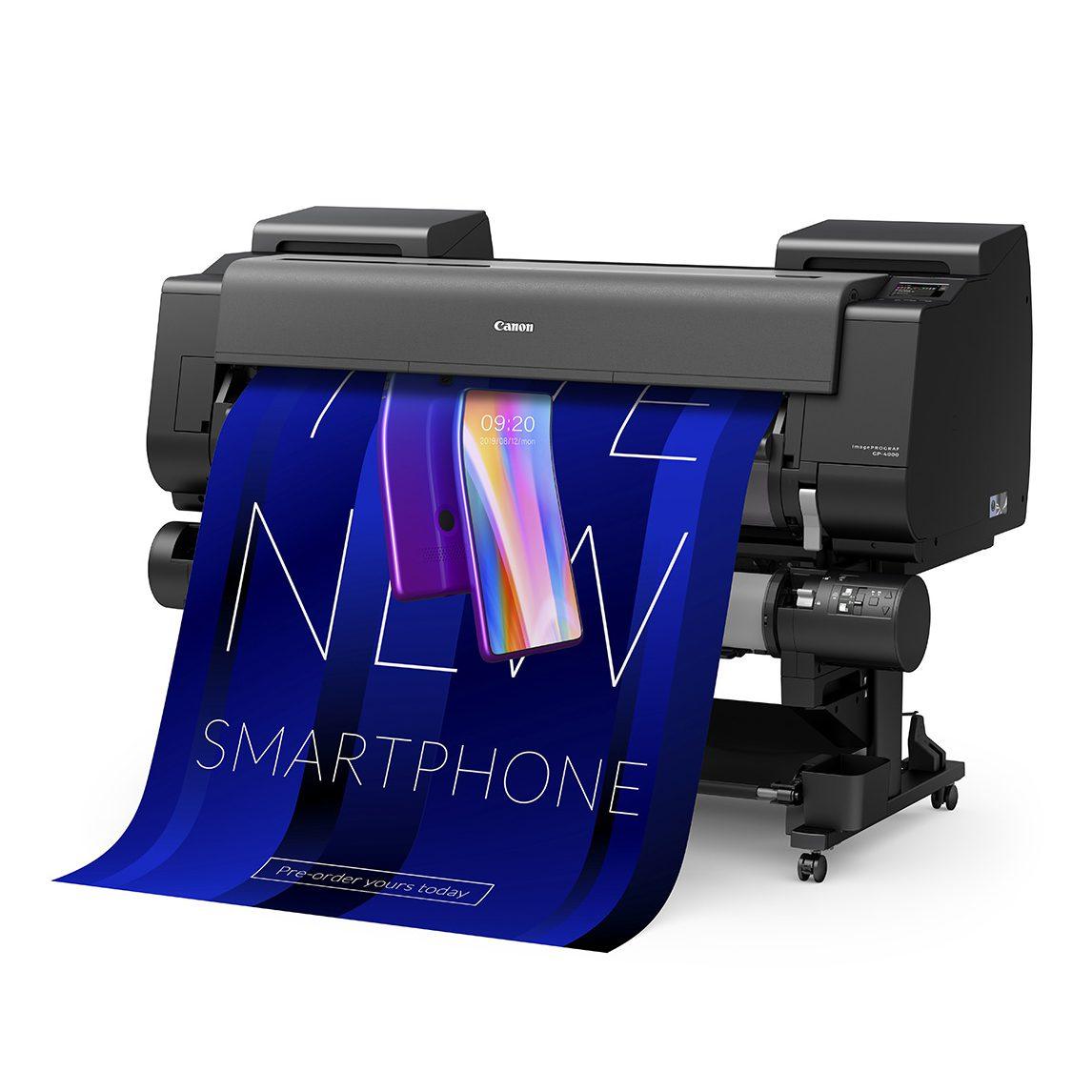

Canon imagePROGRAF GP-4000 (44")

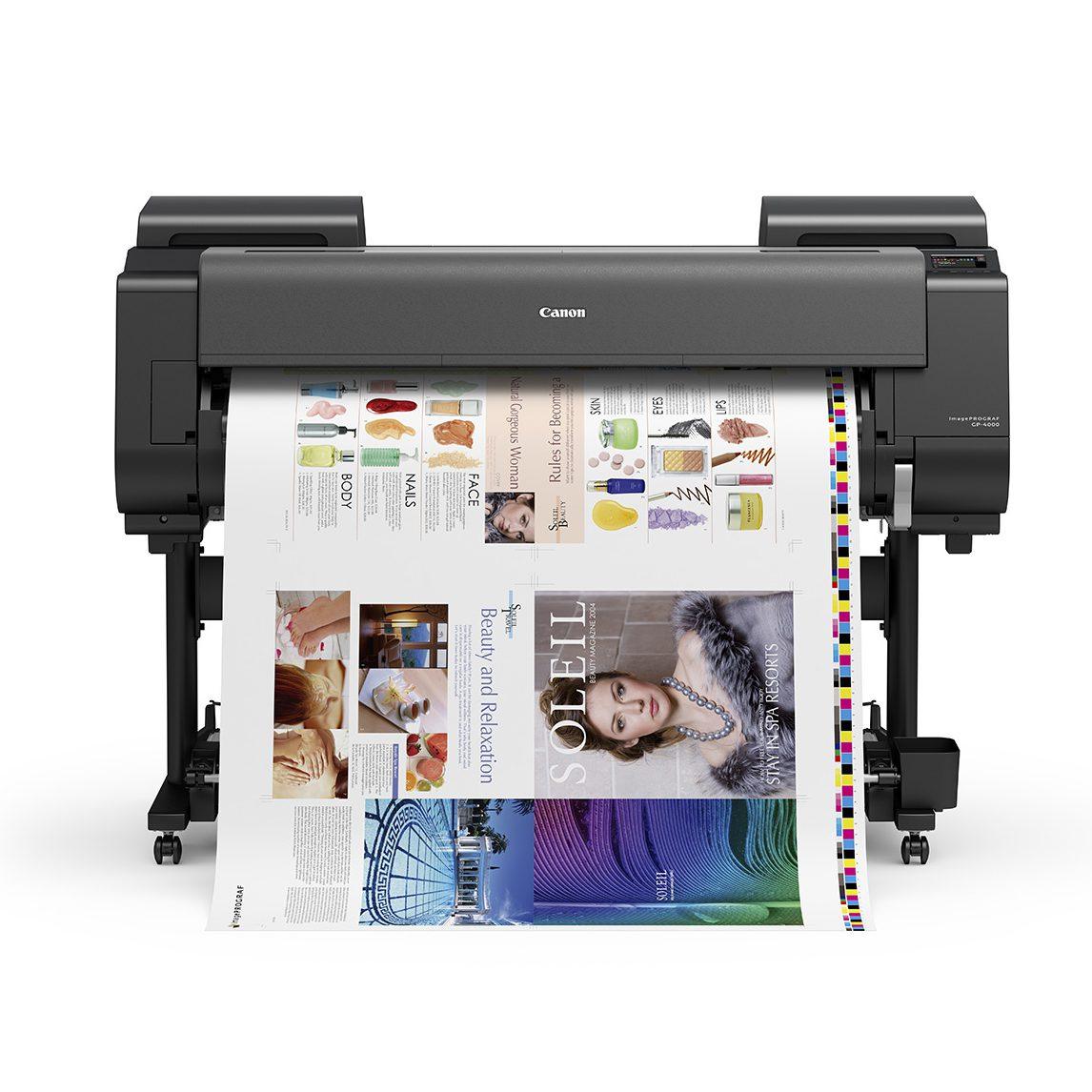

Canon imagePROGRAF GP-4000 (44") - Image 2

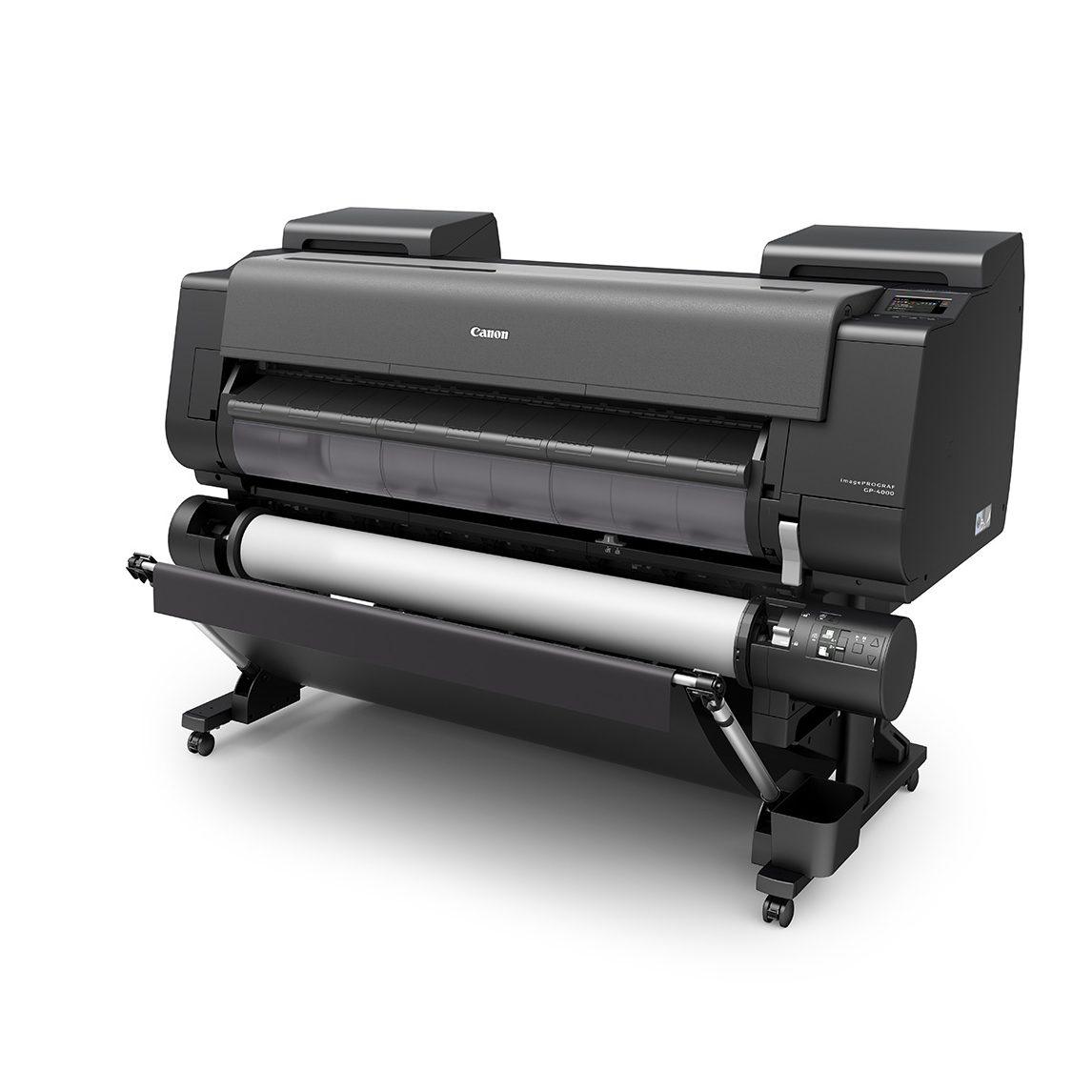

Canon imagePROGRAF GP-4000 (44") - Image 3

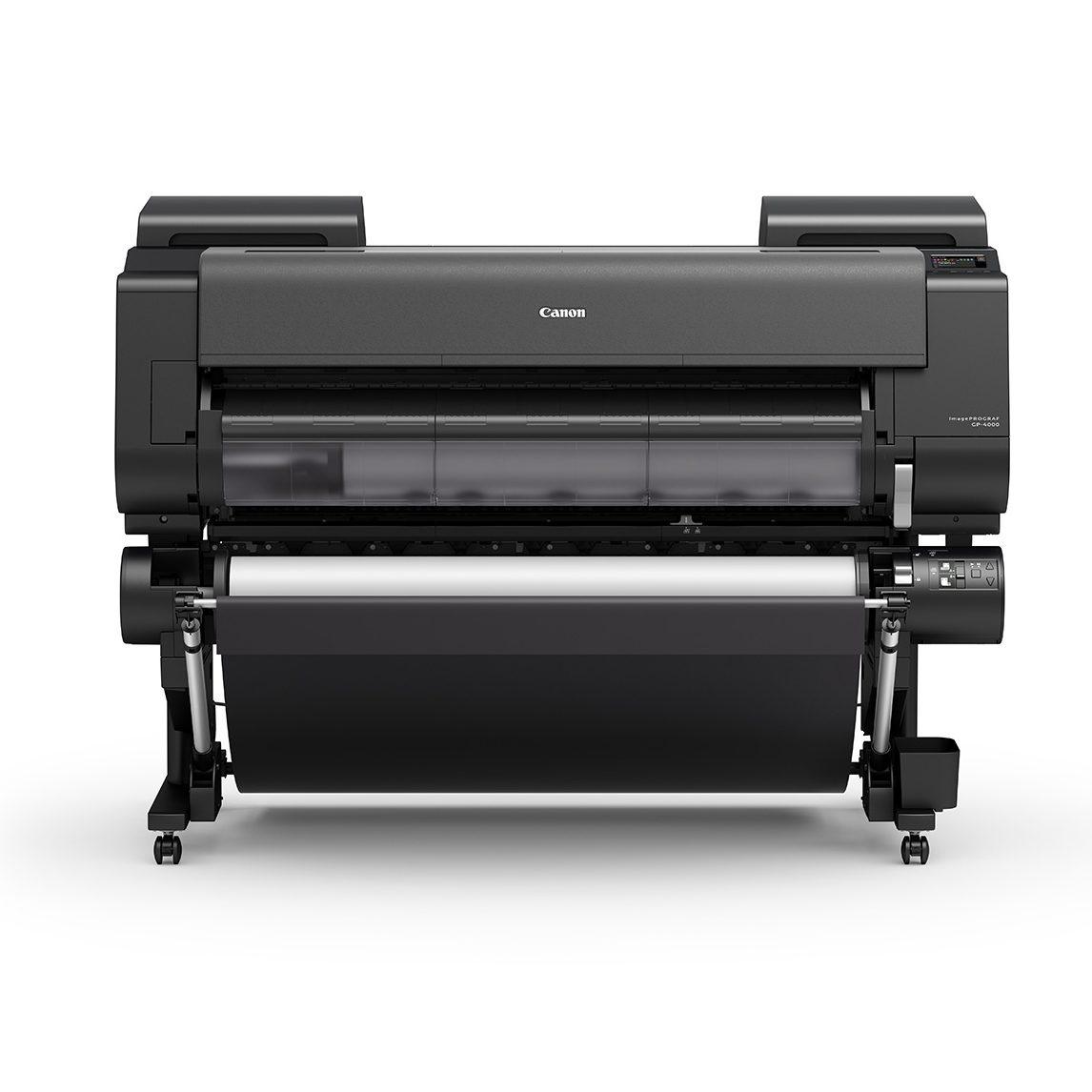

Canon imagePROGRAF GP-4000 (44") - Image 4

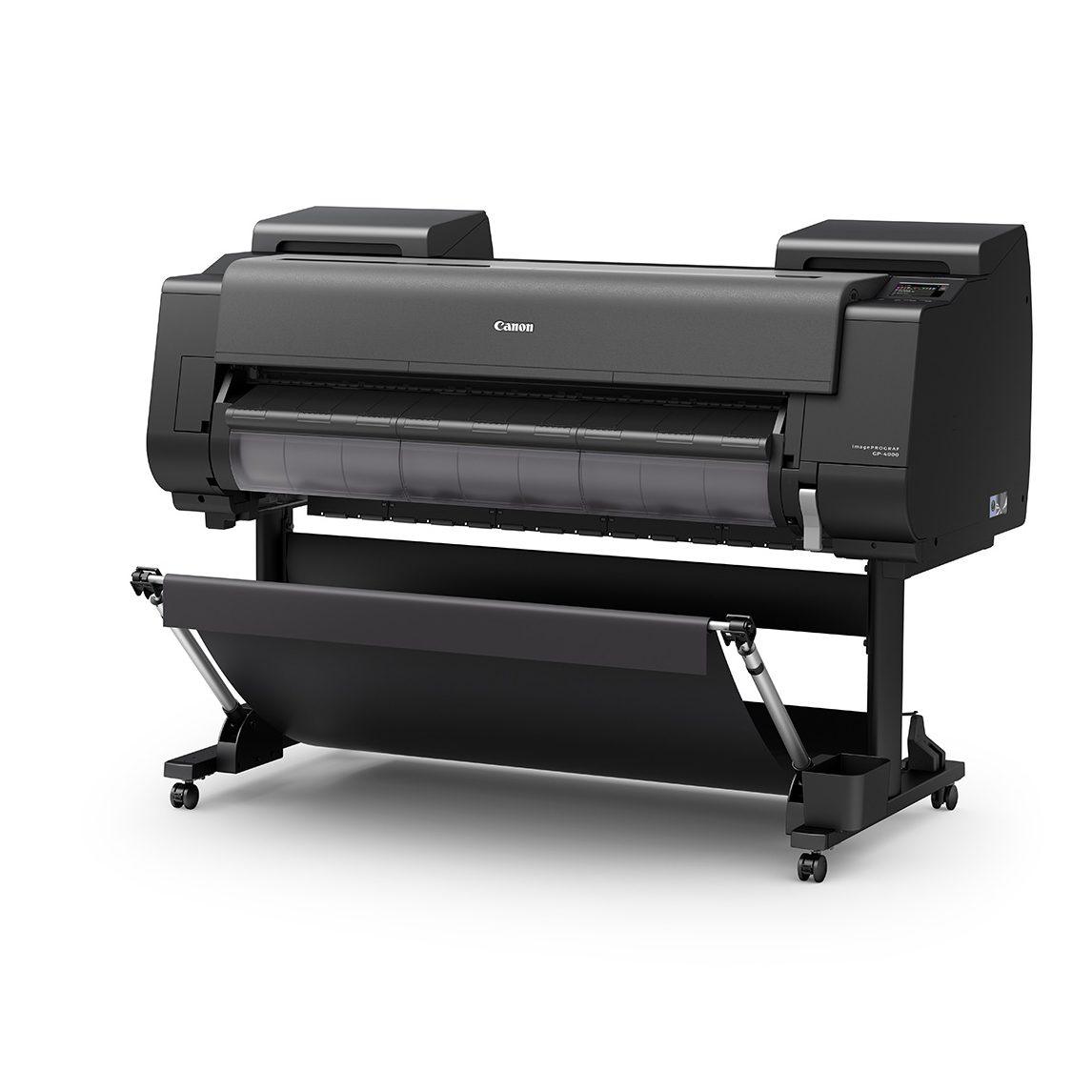

Canon imagePROGRAF GP-4000 (44") - Image 5
Canon imagePROGRAF GP-4000 (44") - Image 6
Canon imagePROGRAF GP-4000 (44") - Image 7
Canon imagePROGRAF GP-4000 (44") - Image 8
Canon imagePROGRAF GP-4000 (44") - Image 9
Canon imagePROGRAF GP-4000 (44") - Image 10
Canon imagePROGRAF GP-4000 (44") - Image 11
Canon imagePROGRAF GP-4000 (44") - Image 12
Canon imagePROGRAF GP-4000 (44") - Image 13

44″ Large Format Printer
Premium 10-colour + Fluorescent Pink system for vibrant large-scale graphics.
LUCIA PRO + Fluorescent Pink Inks
Unmatched colour gamut, including neon & pastel tones.

Radiant Infusion Technology
Blends fluorescent and conventional inks for bright, smooth results.
PANTONE® Calibrated
Supports Pastels & Neons guide; exceptional brand matching.

500 GB HDD + 3 GB RAM
Jobs stored, queued & reprinted from the printer itself.
Intelligent Media Handling
Auto-detects width, type and direction of media loading.

Borderless Printing
Edge-to-edge output across standard and custom widths.
Energy Efficient Design
Low power draw, eco-conscious performance.

Perfect for full-scale posters, fabrication displays, events, and high-impact marketing walls.

Canon imagePROGRAF GP-4000 — 44″ high-performance printer with Fluorescent Pink, PANTONE® calibration and Radiant Infusion for stunning large-format output.

  • Fluorescent Pink

    Radiant Infusion

  • 44″ Width

    Large Format

  • Borderless

    Custom Widths

  • ~97s A0

    Fast Poster Mode

  • Direct Print

    PDF / JPEG via USB

  • PIN Secure

    Confidential Print

Manufacturer SKU: 5253C002AA
Make Enquiry
Categories: ,

The Canon imagePROGRAF GP-4000 is a high-end 44-inch large-format printer designed for production environments that demand vivid colour, scale, and precision. Featuring 11-colour LUCIA PRO pigment inks plus a Fluorescent Pink channel and Canon’s Radiant Infusion technology, it delivers glowing neons, subtle pastels and exceptional accuracy for posters, retail graphics and exhibition displays.

Key Benefits & Features

  • Fluorescent Pink + Radiant Infusion: Layer FP with standard inks to create striking neon highlights and smooth pastel blends.
  • PANTONE® Calibrated: Supports Pastels & Neons Guide with up to 99 % PANTONE FORMULA GUIDE coverage.
  • Production performance: 3 GB RAM + 500 GB HDD for job queuing, secure PIN printing and fast reprints.
  • Smart media handling: Auto-detects roll width and type for accurate, waste-free loading.
  • Borderless printing: Full bleed on standard and custom widths using micro-margin control.

Ideal Applications

  • Retail signage and POS posters with fluorescent impact
  • Event graphics, exhibition walls and photo backdrops
  • Corporate branding and visual merchandising
  • Print-for-pay shops offering neon/pastel specialty output

Specification Highlights

Print Width 44″ (1,118 mm)
Ink System 11-colour LUCIA PRO Pigment + Fluorescent Pink
Max Resolution Up to 2400 × 1200 dpi
Ink Tank Sizes 160 ml / 330 ml / 700 ml
Media Handling Roll & cut-sheet support; dual-roll option available
Memory / Storage 3 GB RAM / 500 GB HDD
Interfaces USB 2.0, Gigabit Ethernet, Wi-Fi (802.11 b/g/n)
Power Consumption Approx. 99 W (max) / 2 W (sleep)

Included Software & Utilities

  • PosterArtist Lite: Easy poster creation with fluorescent/pastel templates.
  • Professional Print & Layout, Direct Print Plus, Free Layout Plus for streamlined workflows.
  • Device Management Console & Accounting Manager: For fleet control and cost monitoring.

Why Buy from RGB UK

  • Expert Canon partner: Decades of large-format experience & technical knowledge.
  • Pre-sales support: Guidance on media choice, workflow & colour setup.
  • Remote installation: Optional configuration and software onboarding.
  • Aftercare: Inks, media, calibration and colour management help.

Contact RGB UK

To request a demo or quote for the Canon GP-4000:

Email: sales@rgbuk.com | Call: 01189 344426

All specifications subject to change without notice. Canon and imagePROGRAF are registered trademarks of Canon Inc.

Additional information

Brand

imagePROGRAF
Manufacturer

Canon
Printer Size

44"
Colour

Black

Video

0/5 (0 Reviews)

Specification

Specifications in detail

Printer Technology

  • Printer Type
    11 Colour 44″
  • Print Technology
    Canon Bubblejet on Demand 11 colours integrated type (12 chips per print head x 1 print head)
  • Print Resolution
    2,400 x 1,200 dpi
  • Number of Nozzles
    Total : 18,432 nozzles MBK, PBK, C, M, Y, GY, R, O, G, V, FP : 1,536 nozzles each
  • Line Accuracy
    ±0.1% or less
    User adjustments necessary. Printing environment and media must match those used for the adjustments.
    CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
  • Nozzle Pitch
    600 dpi x 2 includes Non-firing nozzle detection and compensation system
  • Ink Droplet Size
    minimum 4 pl per colour
  • Ink Capacity
    Bundled Starter Ink : 330 ml (MBK, PBK, C, M, Y, GY, R, O, G, V, FP)
    Sales Ink : 160 ml, 330 ml, 700 ml
  • Ink Type
    Pigment inks : 11 colour MBK, PBK, C, M, Y, GY, R, O, G, V, FP
  • Printer Languages
    PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
  • Standard Interfaces
    USB A Port : USB Memory Direct Print for JPEG/PDF files
    USB B Port : Built-in Hi-Speed USB
    Ethernet : IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / Auto-Negotiation, IEEE 802.3x Full Duplex
    Wireless LAN : IEEE802.11n/IEEE802.11g/IEEE802.11b
    *Please refer to user manual how to activate/deactivate the wireless LAN

Memory

  • Standard Memory
    3GB
    Expansion slot : No
  • Hard Drive
    500GB (Encrypted)

Print Speed

  • Poster
    Plain Paper (A0)
    01:37 (Fast)
    02:49 (Standard)Heavy coated Paper (A0)
    02:49 (Standard)
    05:33 (High Quality)Photo Paper (A0)
    05:33 (Standard)
    08:16 (High Quality)

Media Handling

  • Media Feed and Output
    Upper Roll Paper : One Roll, Front-loading, Front Output
    Lower Roll Paper (option) : One Roll, Front-loading, Front Output
    Cut Sheet : Front-loading, Front Output (Manual feed using media locking lever)
  • Media Width
    Roll paper : 152.4 mm – 1118 mm
    Cut sheet : 152.4 mm – 1118 mm
  • Media Thickness
    Roll/Cut : 0.07 mm – 0.8 mm
  • Minimum Printable Length
    Roll paper : 101.6 mm
    Cut sheet : 203.2 mm
  • Maximum Printable Length
    Roll paper : 18 m (Varies according to the OS and application)
    Cut sheet : 2133.6 mm
  • Maximum Media Roll Diameter
    170 mm
  • Media Core Size
    Internal diameter of roll core : 2″/3″
  • Margins Recommended Area
    Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
    Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
  • Margins Printable Area
    Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
    Roll paper (borderless print) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm
    Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
  • Media Feed Capacity
    Roll Paper : 1 roll
    Cut Sheet : 1 sheet
  • Media Take-Up Roll Unit
    Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll.
  • Borderless Printing Width (Roll Only)
    [Recommendation] 515 mm (JIS B2), 728 mm (JIS B1), 1030 mm (JIS B0), 594 mm (ISO A1), 841 mm (ISO A0), 10″, 14″, 17″, 24″, 36″, 42″, 44″
    [Printable] 257 mm (JIS B4), 297 mm (ISO A3), 329 mm (ISO A3+), 420 mm (ISO A2), 6″, 8″, 12″, 15″, 16″, 20″, 22″, 30″, 34″, 300 mm, 500 mm, 600 mm, 800 mm, 1000 mm, and custom roll width (152.4 – 1118 mm)
  • Maximum Number of Delivered Prints
    Standard position : 1 sheet
    Flat position : A2 landscape, glossy paper up to 10 sheets, coated paper up to 20 sheets (excludes strong curled condition)

Power and Operating Requirements

  • Power Supply
    AC 100-240V (50-60Hz)
  • Power Consumption
    Operation : 99 W or less
    Sleep mode : 2.0 W or less
    Default setting for the time to enter the Sleep mode : Approx. 5 Minutes
    Power off : 0.3 W or less
  • Operating Environment
    Temperature : 15~30℃, Humidity : 10~80% RH (no dew condensation)
  • Accoustic Noise (Power/Pressure)
    Pressure
    Operation : 49 dB (A) (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
    Standby : 35 dB (A) or less
    Power
    Operation : 6.6 Bels (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
  • Regulations
    Europe : CE mark
    Other Countries : CB certfication
  • Environment Certificates
    TUV, CB

Dimensions and Weight

  • Physical Dimensions and Weight
    1593 x 984 x 1168 mm (Basket Open)
    1593 x 766 x 1168 mm (Basket Closed)
    124 kg (Main Unit + Stand + Basket, including Roll Holder Set, excluding ink and print head)
  • Packaged Dimensions and Weight
    Printer (Main unit with stand and pallet) : 1820 x 915 x 1042 mm
    178 kg
    Roll Unit : 1727 x 562 x 461 mm
    33 kg

Options

  • Optional Items
    2/3″ Roll Holder : RH2-46
    Roll Unit : RU-43

Consumables

  • User Replaceable Items
    Ink Tank : PFI-2100 (160ml), PFI-2300 (330ml), PFI-2700 (700ml)
    Print Head : PF-10
    Cutter Blade : CT-07
    Maintenance Cartridge : MC-30
0/5 (0 Reviews)

Whats in the box

  • Canon GP-4000 Printer (main unit + stand + basket)
  • Print head (PF-10) & maintenance cartridge
  • Starter ink set (11 × 330 ml tanks including FP)
  • 2″/3″ core media spool & adaptors
  • Power cable, setup guide & software media

Optional: Dual-roll unit (RU-43) & extra roll holders.

0/5 (0 Reviews)

Setup & Colour Tips

  • Save media presets for faster loading & consistent output.
  • Use micro-margin mode for custom borderless widths.
  • Print proof strips before large runs to confirm fluorescent intensity.
  • Store recurring jobs on the 500 GB HDD for quick reprints.
0/5 (0 Reviews)

Poster Playbook

  • Retail Promo

    Neon window graphics, price boards & banners.

  • Exhibition

    Backdrops & photo walls with high-impact neons.

  • Education

    Vibrant campus signage & posters.

  • Events

    Stage branding and sponsor graphics.

Media tip: Glossy paper for neons; matte for pastels and subtle tones.

0/5 (0 Reviews)

Neon & Pastel Looks

Use the GP-4000’s Fluorescent Pink ink with Radiant Infusion to create neon bursts or soft pastels. Great for retail posters and brand campaigns.

  • Highlight zones: Apply FP in headline text or key callouts.
  • Soft blend: Layer FP at 10–20 % for subtle warm tone effects.
  • Contrast tip: Pair FP with deep neutral backgrounds for legibility.
