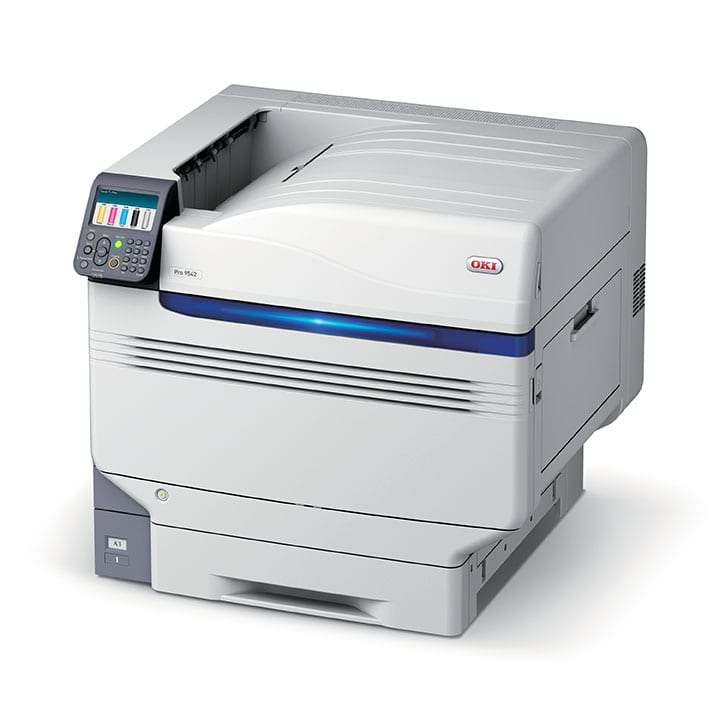

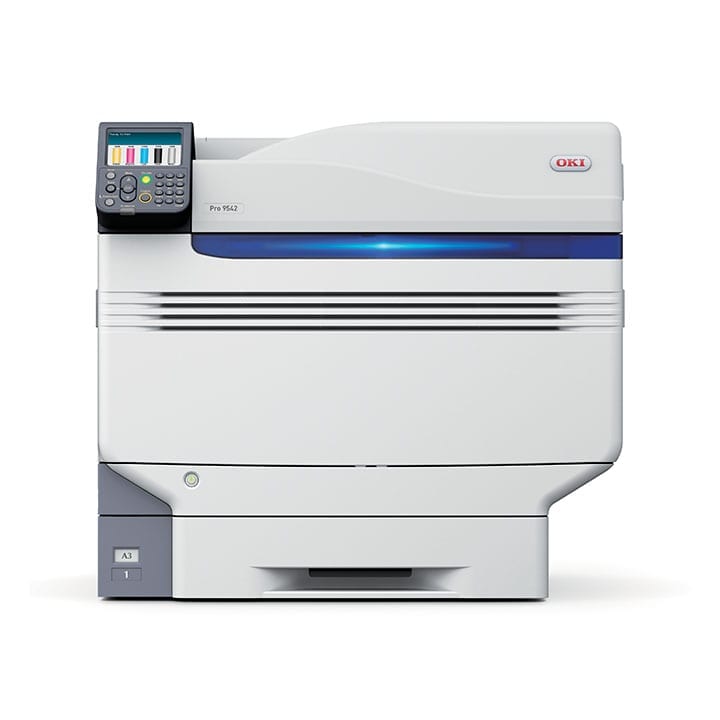

OKI Pro9542 (CMYK + White)
OKI Pro9542 (CMYK + White)
Delivering CMYK plus solid white in a single pass, the OKI Pro9542 produces exceptional high-impact prints on light, dark, and transparent media.
With brilliant colour reproduction, rapid print speeds, and complete media flexibility, this A3+ printer opens up new creative opportunities for in-house, on-demand production – all at a cost-effective price point.
Brilliant Colour with Solid White
- Full CMYK colour plus solid white for bold, high-impact designs
- Ideal for dark, coloured, or transparent media
- Perfect for packaging, signage, and promotional materials
Vibrant Finish and Professional Quality
- Digital LED and Multi-Level ProQ technology for precision and vibrancy
- Sharp, consistent output for both small and large print runs
- High print speeds to meet tight deadlines
Media Flexibility
- Print in-house on a wide range of substrates
- Supports heavy stock and specialty media for creative freedom
Fast, On-Demand Printing
- Quick turnaround times for short-run and custom jobs
- Reduce outsourcing and retain full control over quality
- Ultra-high capacity toners for cost-effective production
Specification
| Printing Technology | Digital 5 LED Full-color Electrophotographic Printing Method |
|---|---|
| Print Resolution | 1200 x 1200 dpi (2 levels) 1200 x 600 dpi (16 levels) 600 x 600 dpi (2 levels) Physical dot pitch: 1200 dpi |
| Warm-up Time | Approx. 50.0 seconds from power-on Approx. 35.0 seconds from power save |
| First Print Out Time | Color: Approx. 8.0 seconds Mono: Approx. 8.0 seconds |
| Print Speed | A4(Landscape) 50 ppm color, 50 ppm mono A3 28 ppm color, 28 ppm mono |
| Interface | 1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed) |
| Protocol | TCP/IP, EtherTalk |
| Printer Language | Adobe PostScript 3, PCL 5c emulation, PCL 6 (XL) emulation, XPS emulation, PDF v1.7 emulation, IBM 5577H-02 Emulation |
| Supported OS (Click here for latest OS) | Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, OS X 10.10, OS X 10.9, OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Linux |
| Memory (Std./Max.) | 2GB/2GB |
| Hard Disk Drive | (Optional) 160 GB |
| Font | Adobe PostScript 136 fonts, PCL emulation 87 scalable fonts, 4 bitmap fonts |
| Paper Size | Tabloid extra (12″ x 18″), Tabloid (11″ x 17″), Legal 13, Legal 13.5, Legal 14, Letter, Executive, Index Card (3″ x 5″) (75 x 125mm), A3, A4, A5, A6, B5, B4, A3+, SRA3, SRA4, Statement, Envelopes, Postcard, Return postcard, Banner, B6 Half, B6, 8K, 16K |
| Paper Weight | Tray 1 : 52 – 320 gsm (Optional)Additional Tray : 52 – 320 gsm Multi-purpose tray : 52 – 360 gsm |

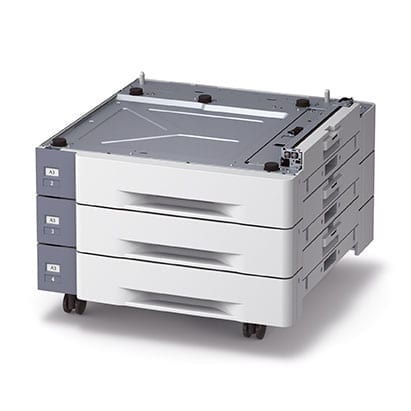

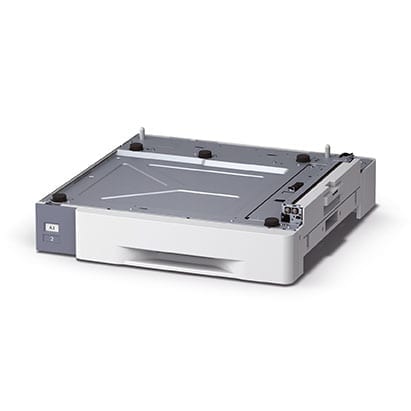

| Input Capacity | Tray 1 : 530 sheets (Optional)Additional Tray : 530 sheets Multi-purpose tray : 300 sheets |
| Output Capacity | Face Down : Max. 610 sheets Face Up : Max. 300 sheets |
| Dimensions(WxDxH) | 699 x 625 x 640 mm |
| Weight(includes supplies) | Approx. 116.5 kg |
| Weight(not includes supplies) | Approx. 91.0 kg |
| Operating Environment | Operating: 10 – 32 °C, 20 – 80 %RH Storage: 0 – 43 °C, 10 – 90 %RH No condensation |
| Power Source | Single phase 230 VAC ±10%, 50/60 Hz ±2% |
| Power Consumption | Operating: Max. 1,500W / Ave. 1,100W Idle: 40W Power Save: 30.0W Deep Sleep: 4.0W Auto-Off: 0.4W |
| Safety & Environment Regulation | Energy Star, EMC-Directive, CE Mark, GS Mark, CCC Mark, cULus Mark |
| Noise Level | Operating :Approx. 57 dBA Idle: < 34 dBA Power Save: < 30 dBA or Background level |
| Duty Cycle | Recommended: 25,000 pages/month Maximum: 300,000 pages/month |
| In the Box | Manuals, DVD-ROM, Starter toner cartridge x 5, Image Drum x 5, Power cable |
Overview
Brilliant colour
Print in a full range of CMYK plus solid white
Vibrant finish
High-quality results with digital LED and Multi-Level ProQ technology
Media flexibility
Print in-house on dark and transparent media
Speedy turnaround
Fast, on-demand graphic arts printing in-house
