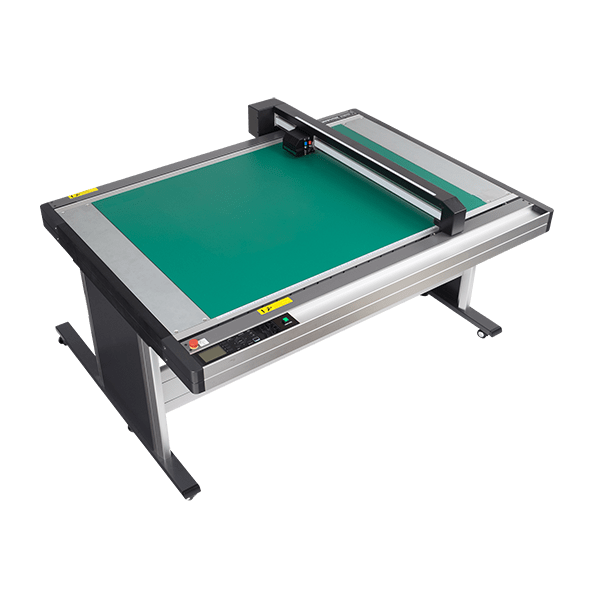

The Graphtec FCX2000 Series is a professional flat bed cutting plotter designed for prototyping and small production runs of rigid materials without the need for a cutting die. It uses high vacuum suction or electrostatic hold down to keep media flat, allowing precise contour cutting and creasing with head pressures up to 1 kg. By combining dual tool heads with Graphtec’s digital servo motors, the FCX2000 reduces media waste and produces consistent results.

This series features offline USB operation, so you can simply save cut files to a USB drive and run jobs directly from the 3.7 in colour LCD panel—no computer required. The Advanced Registration Mark Sensing (ARMS 6.0) system automatically scans printed registration marks and compensates for distortion, enabling accurate print‑and‑cut jobs. The dual‑head design can apply 500 gf on tool 1 and 1 kgf on tool 2 and processes everything from vinyl, self‑adhesive films and reflective sheets to chipboard, corrugated cardboard and sandblast mask.

Key Features:
• Vacuum suction or electrostatic hold‑down to securely grip media for accurate cutting.
• Dual tool heads deliver up to 500 gf (tool 1) and 1,000 gf (tool 2) of cutting force at speeds up to 400 mm/s.
• Mountable media width up to 950 mm, with effective cutting areas from 610 × 920 mm to 1,800 × 920 mm depending on model.
• Offline operation via USB flash drive; barcode‑driven job recall reduces operator error.
• ARMS 6.0 registration mark sensing, one‑point compensation, scan start position and expanded cutting area capabilities.
• Durable construction with enhanced vacuum suction to reduce noise and deliver stable performance.
• Support for Graphtec Pro Studio (Windows), Graphtec Studio for Mac and Cutting Master 4 plug‑ins for Adobe Illustrator and CorelDRAW.

Machine Options:
• FCX2000‑60VC – 610 × 920 mm cutting area with vacuum hold‑down; external dimensions 1,344 × 1,409 × 930 mm; machine weight 76 kg.
• FCX2000‑120VC – 1,200 × 920 mm cutting area with vacuum hold‑down; dimensions 1,934 × 1,409 × 930 mm; weight 99 kg.
• FCX2000‑120ES – 610 × 920 mm cutting area with electrostatic hold‑down; dimensions 1,344 × 1,409 × 930 mm; weight 93 kg.
• FCX2000‑180VC – 1,800 × 920 mm cutting area with vacuum hold‑down; dimensions 1,934 × 1,409 × 930 mm; weight 116 kg.

Main Applications: Cardboard packaging, POP displays, stickers, sandblast materials, garment patterns, traffic and industrial signage, window graphics and other custom prototypes.

Package Includes: Matching stand with lockable casters, side‑mounted roll media stocker, front and rear catch baskets, power cable, 2.9 m USB cable, user manual, cutting blade holder, cutting blade, loupe for checking blade length, fibre‑tipped pen holder, water‑based fibre‑tipped pen, height adjustment tool and vacuum hose (for vacuum models). Optional specialist tools such as ballpoint, roller or pin type creasing tools are available.

Supplied Software: Graphtec Pro Studio / Graphtec Studio for Mac for artwork creation and machine configuration, plus the Cutting Master 4 plug‑in for Adobe Illustrator and CorelDRAW to send cutting data, set registration marks and adjust tool conditions.
