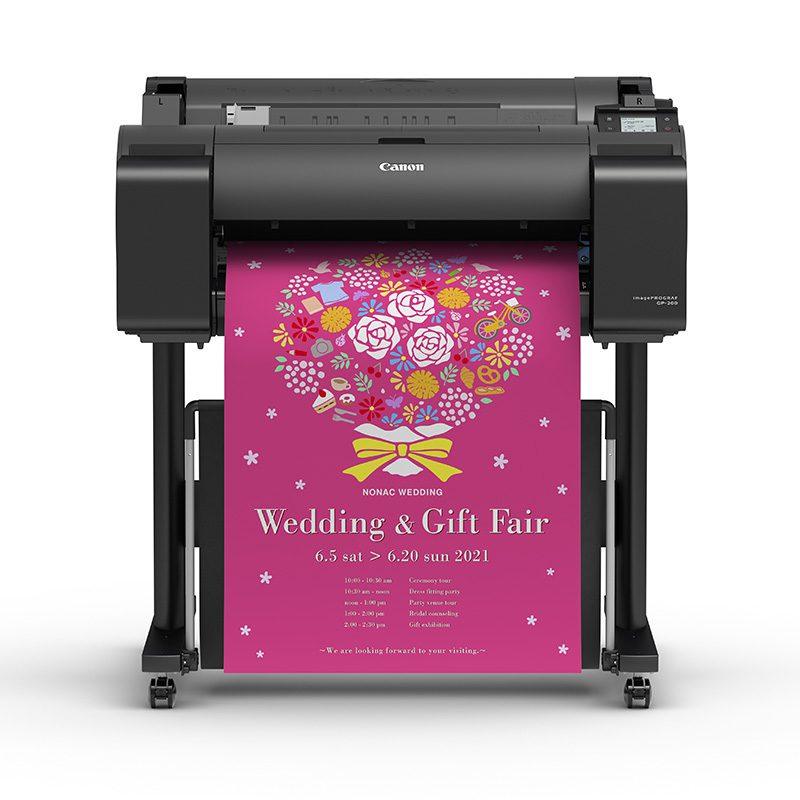

Canon imagePROGRAF GP-200 (24")

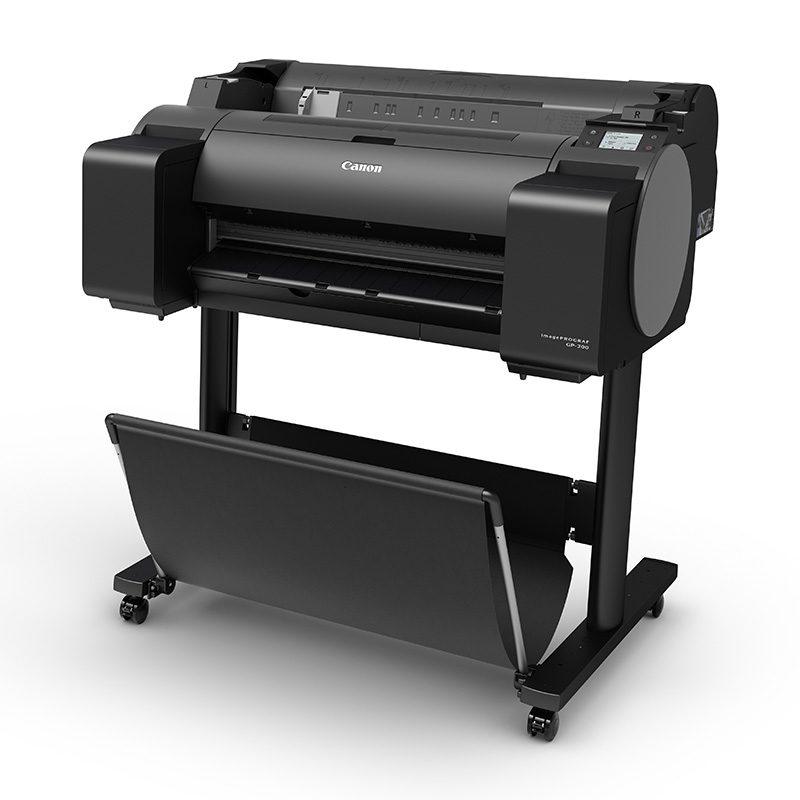

Canon imagePROGRAF GP-200 (24") - Image 2
Canon imagePROGRAF GP-200 (24") - Image 3

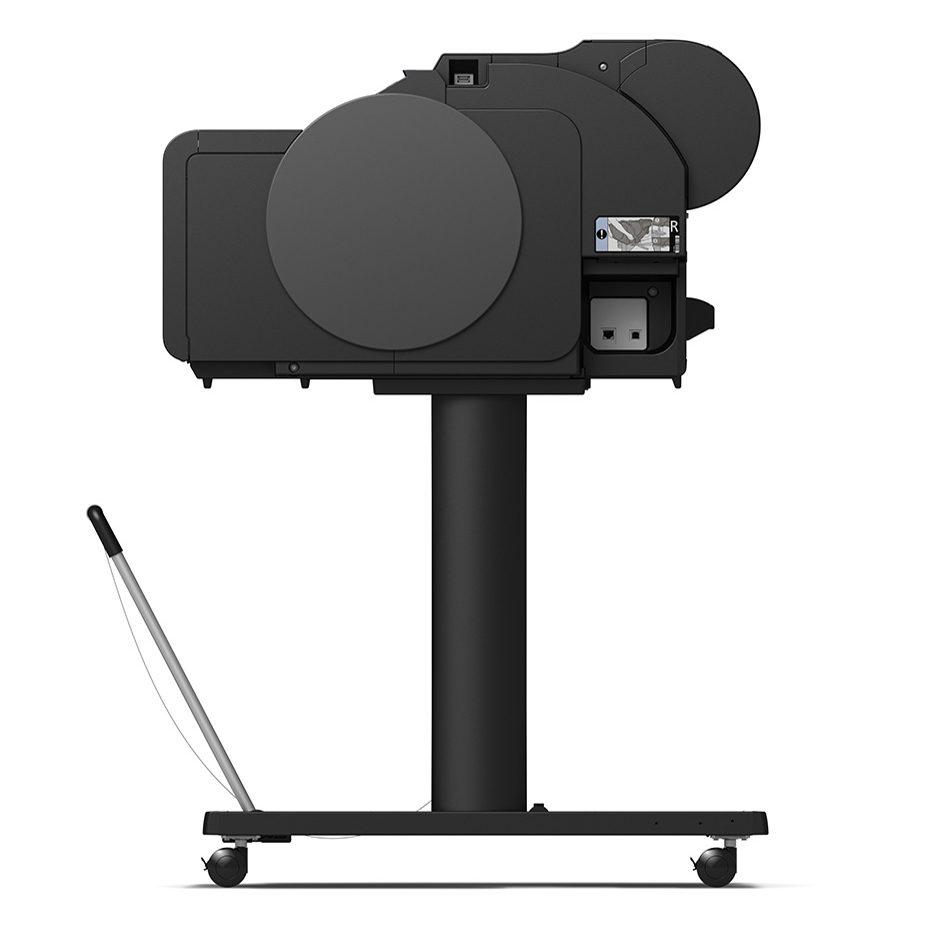

Canon imagePROGRAF GP-200 (24") - Image 4

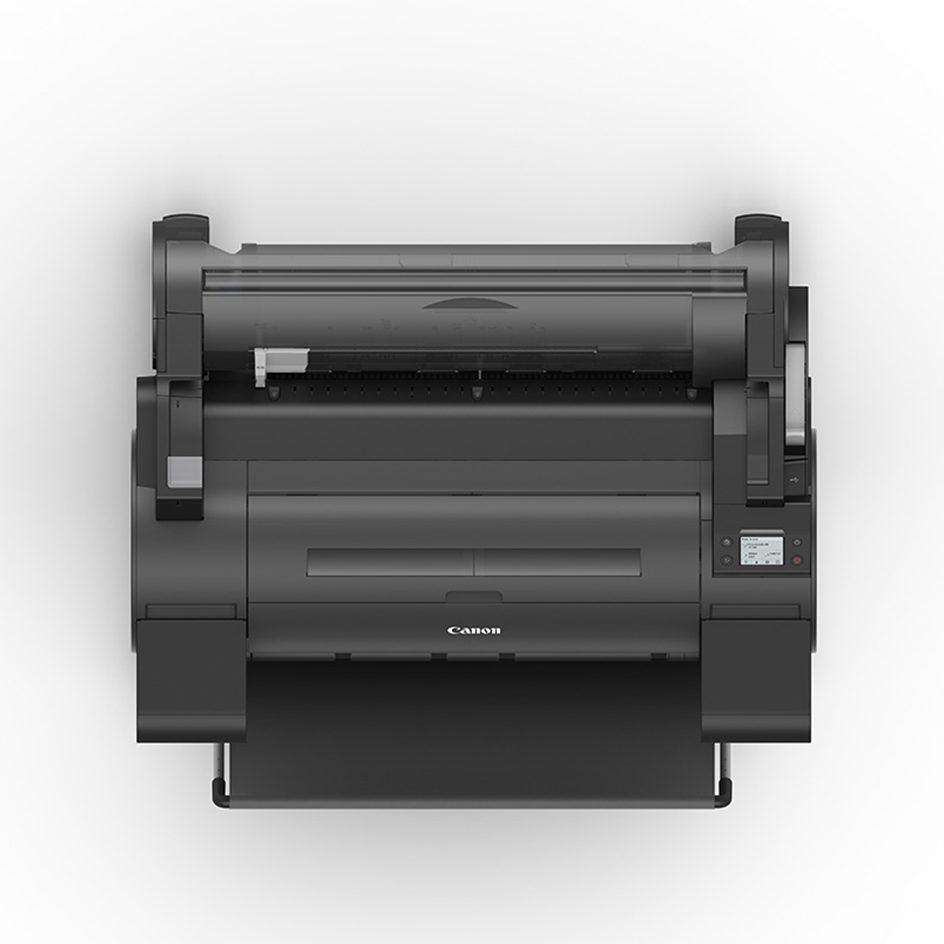

Canon imagePROGRAF GP-200 (24") - Image 5

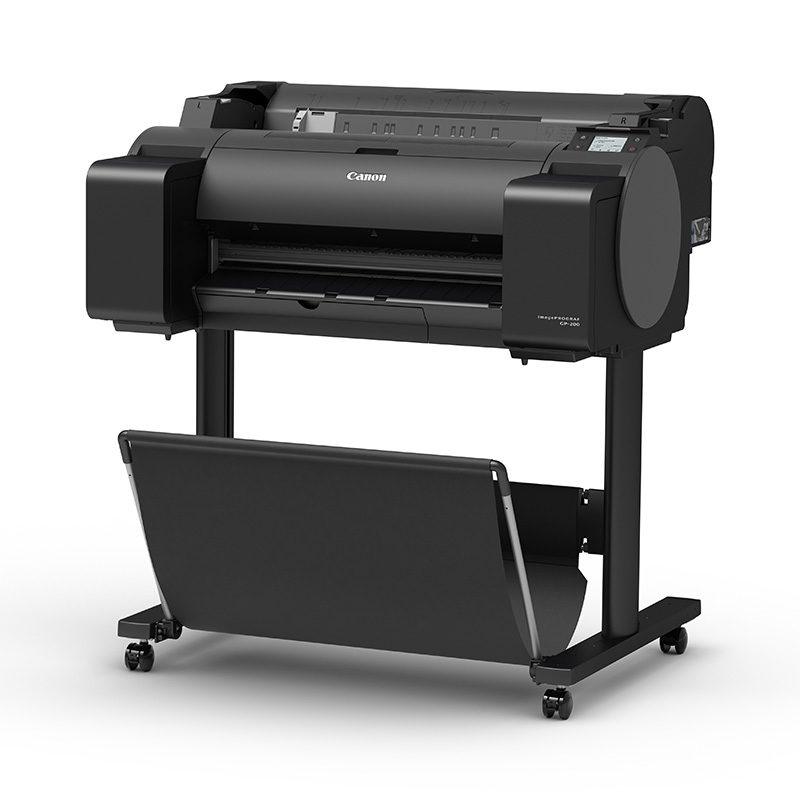

Canon imagePROGRAF GP-200 (24") - Image 6

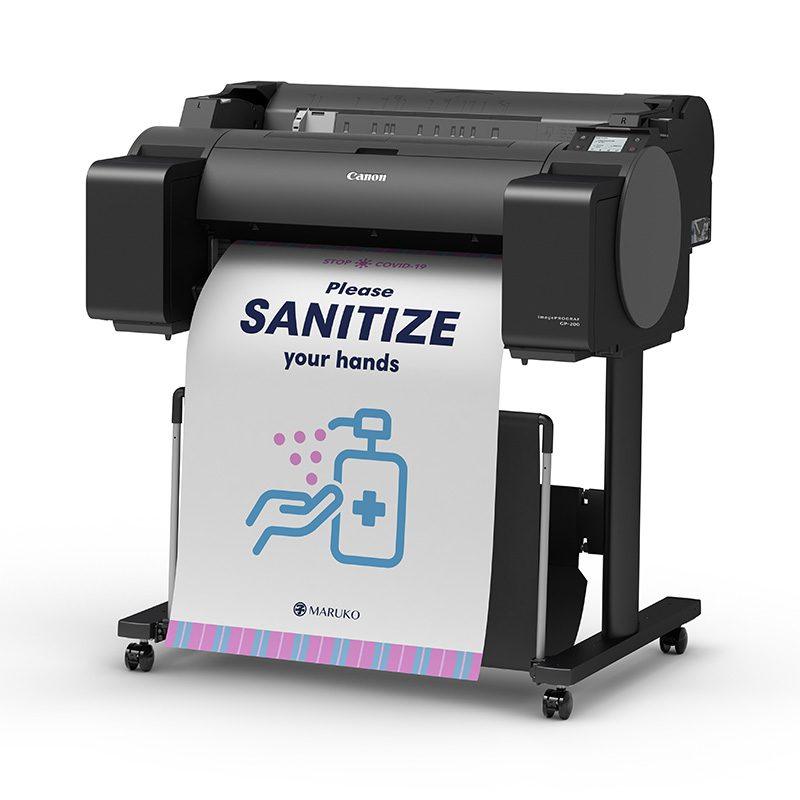

Canon imagePROGRAF GP-200 (24") - Image 7
Canon imagePROGRAF GP-200 (24") - Image 8

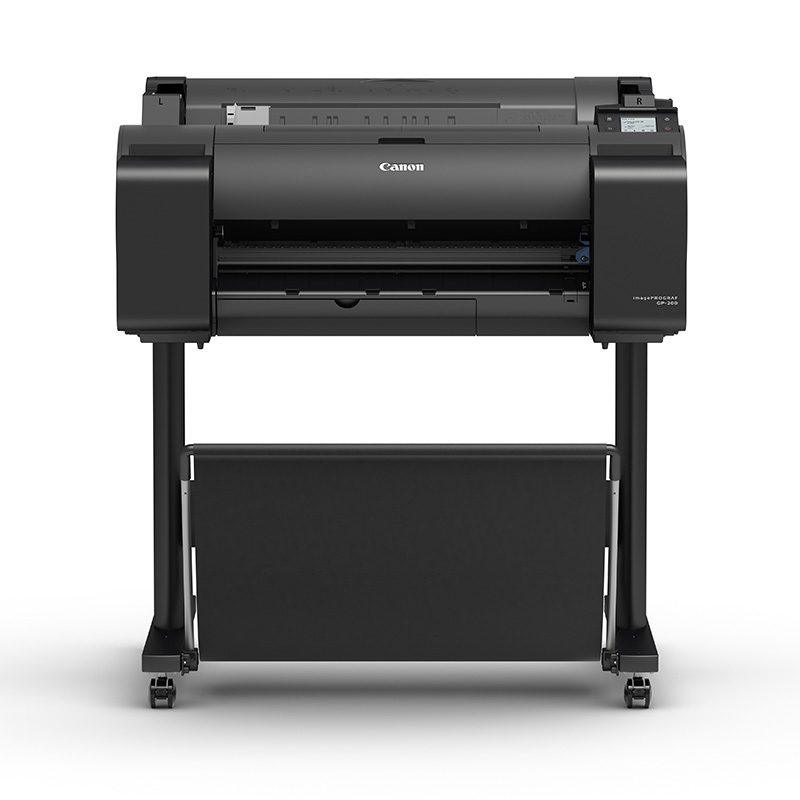

Canon imagePROGRAF GP-200 (24") - Image 9

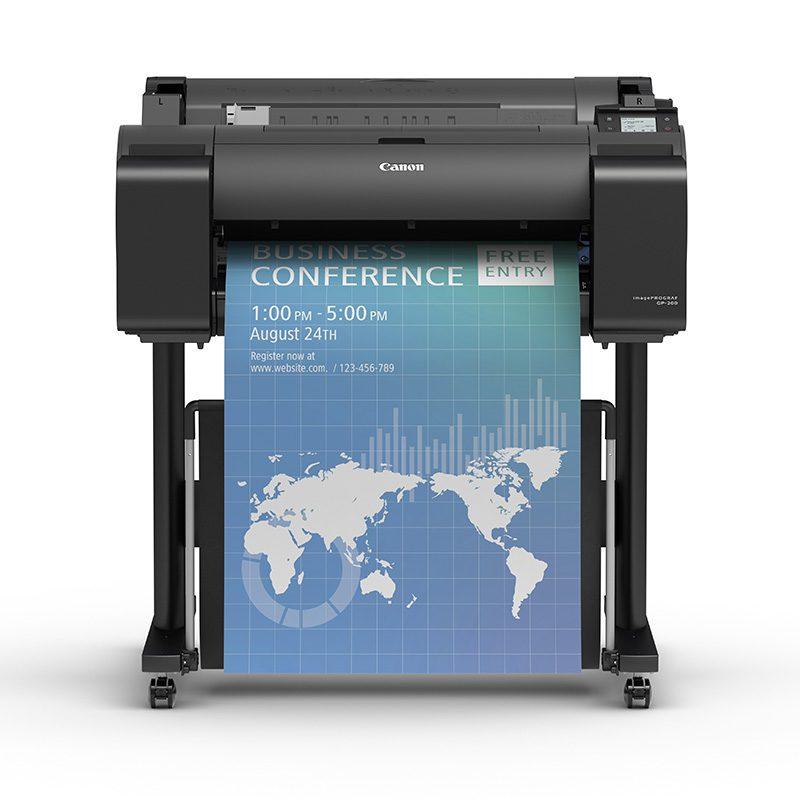

Canon imagePROGRAF GP-200 (24") - Image 10

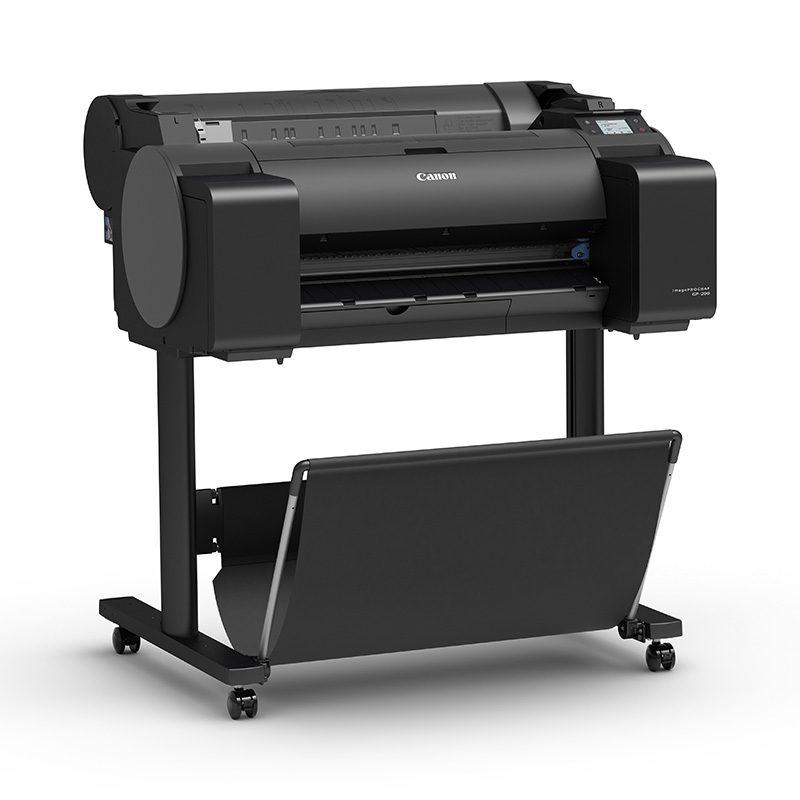

Canon imagePROGRAF GP-200 (24") - Image 11

Canon imagePROGRAF GP-200 (24″)

Canon imagePROGRAF GP-200 — 24″ poster printer with Fluorescent Pink ink for vivid retail graphics, fast borderless output and compact, front-operated design.

  • Fluorescent Pink

    Radiant Infusion

  • 24″ Width

    Large-format

  • Borderless

    Any length

  • ~25s A1

    On plain

  • Direct Print

    PDF/JPEG via USB

  • PIN Secure

    Security Print

Manufacturer SKU: 5249C003AA
SKU: CANGP-200 Categories: ,
Make Enquiry

Canon imagePROGRAF GP-200 (24")

Compact 24" poster printer with 5 colours + Fluorescent Pink for vivid, attention-grabbing graphics. Borderless printing, direct USB/PDF/JPEG print and front-operated design make it easy to run in tight spaces.

Why it stands out

  • Fluorescent Pink with Radiant Infusion for eye-catching spot colours and soft neon gradients.
  • Free-size borderless printing across roll widths to reduce trimming.
  • Fast A1 posters around 25s on plain paper.
  • Direct printing of PDF/JPEG from USB; built-in HDD for quick reprints.
  • Small footprint—flat-to-wall installation with full front access.
  • Security print (PIN) and admin tools for control and accountability.

At-a-glance specs

  • Print width: 24" (610 mm)
  • Max resolution: 2400 × 1200 dpi
  • Ink set: MBK, BK, C, M, Y + Fluorescent Pink (LUCIA TD)
  • Ink tanks: 130 ml / 300 ml
  • Control panel: 3.0" colour touch screen
  • Connectivity: USB, LAN, Wi-Fi

Who is it for?

Retail, education, hospitality and in-house marketing teams that need bright, brand-winning posters without outsourcing.

Core capabilities

  • Fluorescent and pastel tones with accurate spot colour reproduction.
  • Borderless posters on a wide range of media.
  • Quick, simple operation and clean front-loading workflow.

Canon GP-200 vs GP-300

Compare models
GP-200
GP-300
Function
24" Poster Printer
36" Poster Printer
Max print width
24" (610 mm)
36" (914 mm)
Ink system
LUCIA TD 5-colour + Fluorescent Pink
LUCIA TD 5-colour + Fluorescent Pink
Key colour tech
Radiant Infusion
Radiant Infusion
Typical A1 on plain
≈ 25 s*
≈ 25 s*
Borderless printing
Free-size (any length)
Free-size (any length)
Ink tank sizes
130 / 300 ml
130 / 300 ml
Panel
3.0" colour touchscreen
3.0" colour touchscreen
Footprint & install
Compact, front-operated
Compact, front-operated
Best for
Retail, education, in-house A1 posters
Wider POS, school & office banners up to A0

*Speed depends on driver settings, print mode and media.

Unsure which size fits?
Choose GP-200 for compact 24" posters; go GP-300 when you need 36" width for bigger POS and banners.
Email sales@rgbuk.com or call 01189 344426 for tailored advice.

Additional information

Brand

imagePROGRAF
Manufacturer

Canon
Printer Size

24"

Specification

Printer Technology

  • Printer Type
    6 Colour 24″
  • Print Technology
    Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
  • Print Resolution
    2,400 x 1,200 dpi
  • Number of Nozzles
    Total: 15,360 nozzles MBK, BK, C, M, Y, FP: 2,560 nozzles each
  • Line Accuracy
    ±0.1% or less
    User adjustments are necessary. The printing environment and media must match those used for the adjustments.
    CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
  • Nozzle Pitch
    1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
  • Ink Droplet Size
    minimum 5 pl per colour
  • Ink Capacity
    Bundled Starter Ink : 90 ml (MBK, BK, C, M, Y, FP)
    Sales Ink : 130 ml, 300 ml
  • Ink Type
    Pigment inks : 6 colour MBK, BK, C, M, Y, FP
  • OS Compatibility
    Microsoft Windows 32 Bit : 7, 8.1, 10
    Microsoft Windows 64 Bit : 7, 8.1, 10, Windows Server 2008R2, 2012, 2012R2, 2016, 2019
    Apple Macintosh : macOS 10.13.6 – macOS 11
  • Printer Languages
    PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
  • Standard Interfaces
    USB A Port : USB Memory Direct Print for JPEG/PDF files
    USB B Port : Built-in Hi-Speed USB
    Ethernet : IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / Auto-Negotiation, IEEE 802.3x Full Duplex
    Wireless LAN : IEEE802.11n/IEEE802.11g/IEEE802.11b
    *Please refer to user manual how to activate/deactivate the wireless LAN

Memory

  • Standard Memory
    2GB
    Expansion slot : No
  • Hard Drive
    500GB

Print Speed

  • Poster
    Plain Paper (A1):
    0:25 (Fast)
    0:44 (Standard)Heavy coated Paper (A1):
    0:55 (Fast)
    1:22 (Standard)Glossy photo Paper (A1):
    3:28 (Standard)
    5:18 (High Quality)

Media Handling

  • Media Feed and Output
    Roll Paper : One Roll, Upper-loading, Front Output
    Added Roll Paper : N/A
    Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
  • Media Width
    Roll paper : 203.2 mm – 610 mm
    Cut sheet : 203.2 mm – 610 mm
  • Media Thickness
    Roll/Cut : 0.07 mm – 0.8 mm
  • Minimum Printable Length
    Roll paper : 203.2 mm
    Cut sheet : 279.4 mm
  • Maximum Printable Length
    Roll paper : 18 m (Varies according to the OS and application)
    Cut sheet : 1.6 m
  • Maximum Media Roll Diameter
    150 mm
  • Media Core Size
    Internal diameter of roll core : 2″/3″
  • Margins Recommended Area
    Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
    Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
  • Margins Printable Area
    Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
    Roll paper (borderless print) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm
    Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
  • Media Feed Capacity
    Roll Paper : 1 roll
    Cut Sheet : 1 sheet
  • Media Take-Up Roll Unit
    N/A
  • Borderless Printing Width (Roll Only)
    [Recommended] 515 mm (JIS B2), 594 mm (ISO A1), 10″, 14″, 17″, 24″
    [Printable] 257 mm (JIS B4), 297 mm (ISO A3), 329 mm (ISO A3+), 420 mm (ISO A2), 8″, 12″, 15″, 16″, 18”, 20″, 22”, 300 mm, 500 mm, 600 mm, and custom roll width (203.2 – 610 mm)
  • Maximum Number of Delivered Prints
    Standard position of the basket : 1 sheet

Power and Operating Requirements

  • Power Supply
    AC 100-240V (50-60Hz)
  • Power Consumption
    Operation : 71 W or less
    Sleep mode : 2.1 W or less
    Default setting for the time to enter the Sleep mode : Approx. 5 Minutes
    Power off : 0.3 W or less
  • Operating Environment
    Temperature : 15~30℃, Humidity : 10~80% RH (no dew condensation)
  • Accoustic Noise (Power/Pressure)
    Pressure
    Operation : 49 dB (A) (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
    Standby : 35 dB (A) or less
    Power
    Operation : 6.7 Bels (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
  • Regulations
    Europe : CE mark
    Other Countries : CB certfication
  • Environment Certificates
    TUV, CB

Dimensions and Weight

  • Physical Dimensions and Weight
    982 x 870 x 1060 mm (Basket Open)
    982 x 757 x 1060 mm (Basket Closed)
    50 kg (Main Unit + Stand + Basket, including Roll Holder Set, excluding ink and print head)
  • Packaged Dimensions and Weight
    Printer (Main unit with pallet) : 1152 x 913 x 705 mm
    69 kg
    Stand + Basket : 1055 x 824 x 268 mm
    16 kg

Options

  • Optional Items
    2/3″ Roll Holder : RH2-28
    Printer Stand : SD-24

Consumables

  • User Replaceable Items
    Ink Tank : PFl-120 (130ml), PFl-320 (300ml)
    Print Head : PF-07
    Cutter Blade : CT-08
    Maintenance Cartridge : MC-31

Whats in the box

Printer, 1 print head, 1 roll holder (spool), 3 inch paper core attachment, Power Cable, 1 set of starter ink tanks, Set up guide, Printer Stand Setup Guide, Quick Guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), PosterArtist Lite CD-ROM, EU Biocide Sheet, Important Information Sheet

Software Included

imagePROGRAF GP Printer Driver and PosterArtist Lite
Other software is available as a Download from the Web.

GP-200 v GP-300

Model Comparison

Feature Canon imagePROGRAF GP-200 Canon imagePROGRAF GP-300
Print Width 24″ / 610 mm 36″ / 914 mm
Ink System 6-colour pigment (MBK, BK, C, M, Y + Fluorescent Pink) 6-colour pigment (MBK, BK, C, M, Y + Fluorescent Pink)
Radiant Infusion Technology Yes – enhanced colour blending for vivid posters Yes – identical fluorescent output engine
Maximum Resolution 2400 × 1200 dpi 2400 × 1200 dpi
Print Head PF-07 (15,360 nozzles / 2,560 per colour) PF-07 (15,360 nozzles / 2,560 per colour)
Media Handling Roll + Cut Sheet (0.07 – 0.8 mm thick) Roll + Cut Sheet (0.07 – 0.8 mm thick)
Borderless Printing Yes – multiple preset widths up to 24″ Yes – multiple preset widths up to 36″
PosterArtist Software Included Yes (PosterArtist Lite) Yes (PosterArtist Lite)
Memory / Storage 2 GB RAM + 500 GB HDD standard 2 GB RAM + 500 GB HDD standard
Noise Level Approx. 49 dB(A) Approx. 49 dB(A)
Power Consumption Approx. 71 W (operation) Approx. 80 W (operation)
Dimensions (W × D × H) 982 × 870 × 1060 mm (with stand) 1289 × 870 × 1060 mm (with stand)
Weight (approx.) ~ 50 kg ~ 60 kg
Typical Applications Retail & education posters, office marketing materials Retail POS, event signage, large campaign graphics
Ideal Users Studios & offices needing compact A1 poster printing Design teams and print departments producing A0 graphics
Key Advantage Smaller footprint with identical fluorescent output quality Wider format and built-in hard drive for production use

Both models share Canon’s Radiant Infusion technology and Fluorescent Pink ink system.
Choose the GP-200 for compact A1 printing or step up to the GP-300 for A0 posters and higher throughput.
For expert guidance, email sales@rgbuk.com or call 01189 344 426.
