Roland BN2-20A Printer / Cutter
The BN2-20A is a 20″ eco-solvent printer/cutter that combines high-quality printing and contour cutting in one compact machine.
Capable of 1,440 dpi resolution, it handles vinyl, heat-transfer films, stickers, labels and signage, the all in one integrated workflow. With front-loading media, automatic sheet cut, and support for CMYK inks, the BN2-20A is perfect for homes, small shops, studios or anyone scaling into print & cut work.
-
True print-and-cut capability up to 480 mm width
-
High-resolution output for detailed logos and text
-
Simple media handling with front access and auto cut
-
Includes VersaWorks 7, FlexiDESIGNER VersaStudio, and Roland DG Connect
-
Quiet, efficient operation — ~185 W during use, ~27 W in sleep mode
The Roland BN2-20A is designed to deliver professional-grade print & cut output in a compact form factor. Ideal for users transitioning into eco-solvent workflows, it provides power and precision without the footprint of large-format machinery.
Why it’s a strong pick:
-
Integrated printing + cutting — no separate cutter needed
-
Max resolution 1,440 dpi ensures crisp graphics and fine detail
-

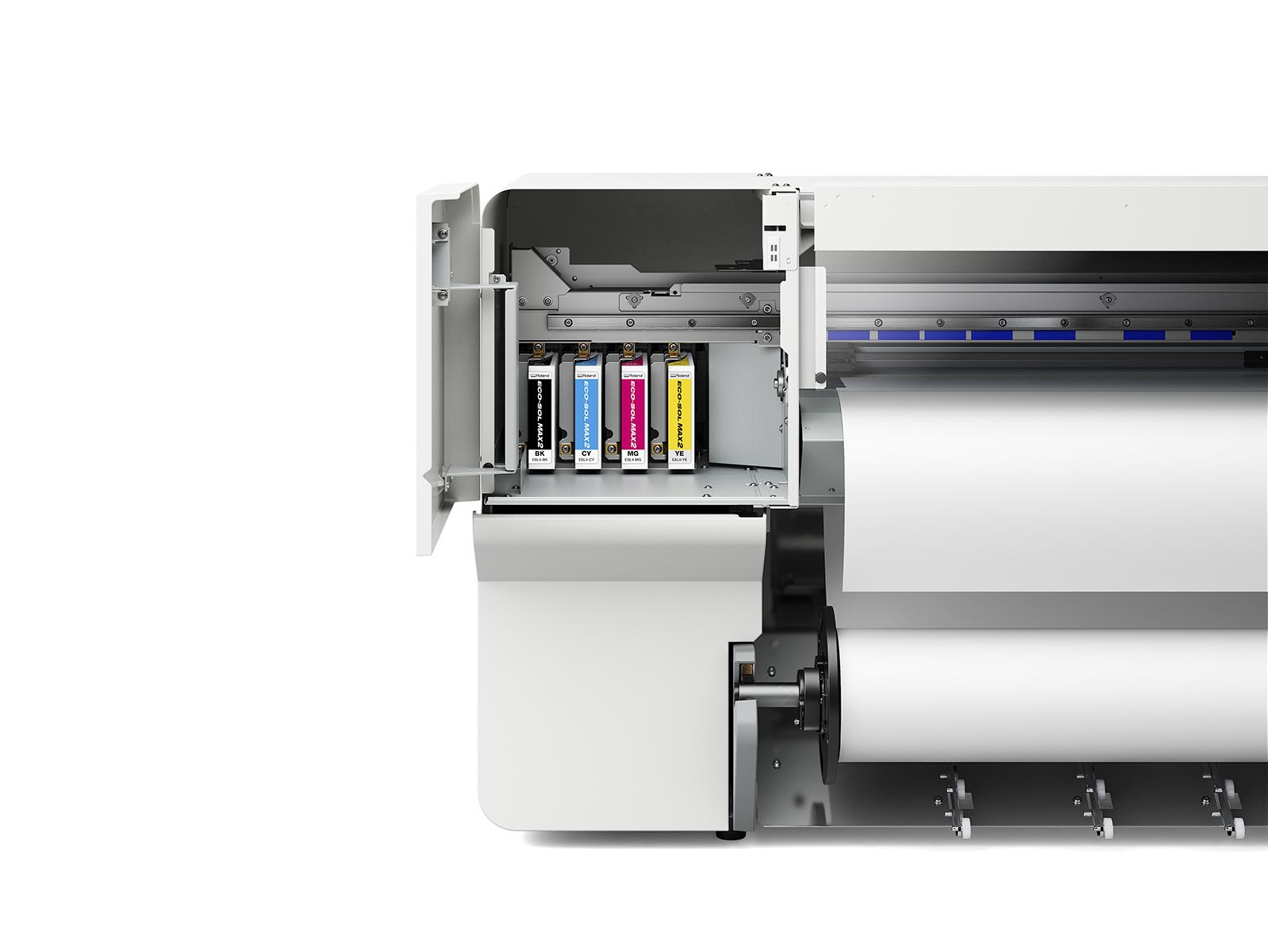

CMYK ink configuration simplifies ink management
-

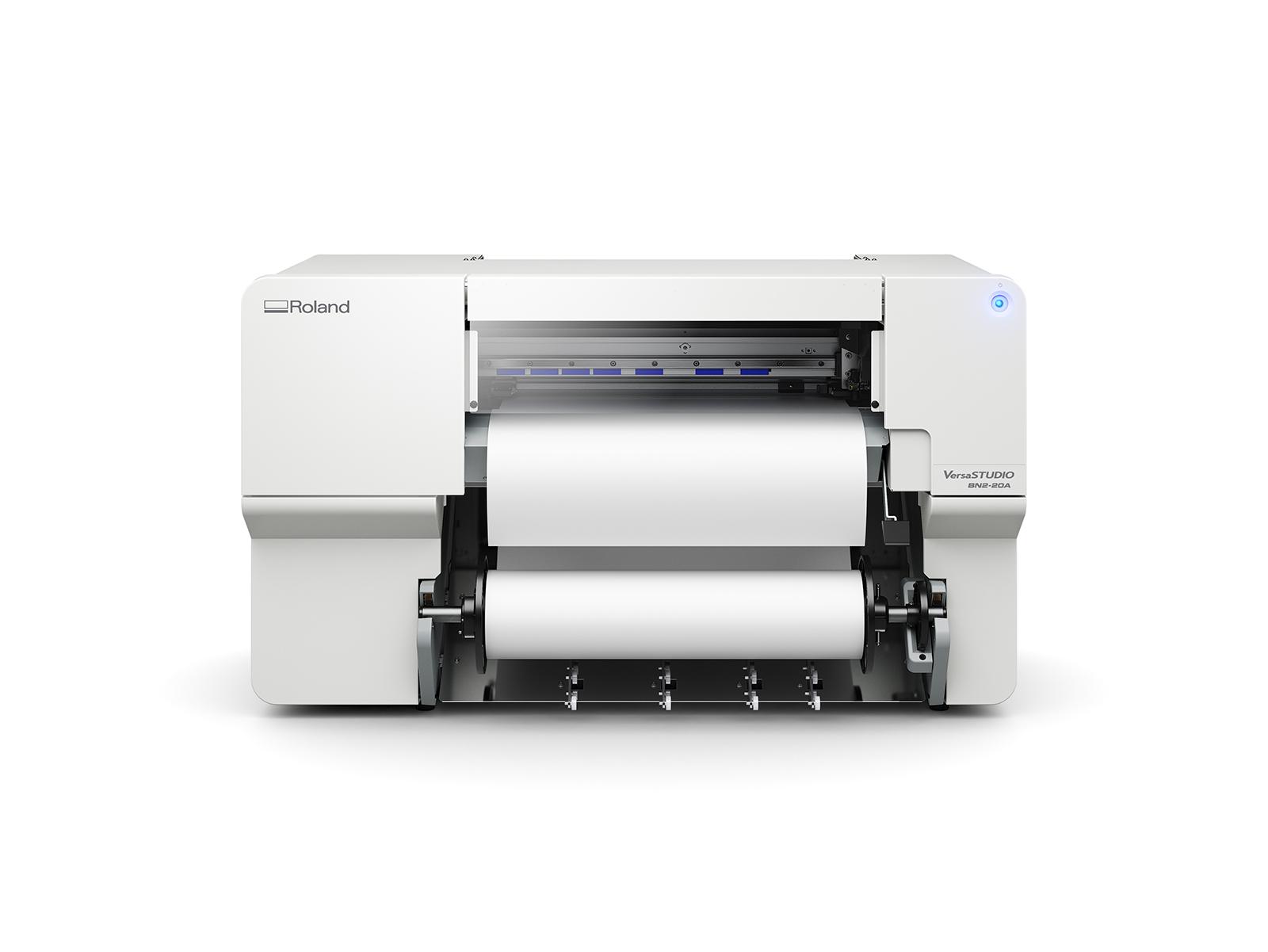

Front-loading design saves space and speeds media changes
-
Automatic sheet cut for clean finishes without manual trimming
-
Bundled software: VersaWorks 7, FlexiDESIGNER VersaStudio, plus DG Connect for job/ink monitoring
Ideal for:
-
Heat transfers, custom apparel graphics
-
Stickers, decals, labels with contour cut
-
Small signage and POS displays
-
Artwork and photo prints on vinyl or film media
Specifications
| Spec | Detail |
|---|---|
| Printing / Cutting Width | Up to 480 mm (18.89 in) |
| Media Width Supported | 150 to 515 mm (5.91 to 20.2 in) |
| Max Media Thickness (Printing) | 1.0 mm with liner |
| Max Media Thickness (Cutting) | 0.4 mm with liner; 0.22 mm without |
| Roll Weight / Diameter | ≤ 6 kg, outer diameter ≤ 150 mm |
| Ink Configuration | 4-color (CMYK), 220 ml cartridges |
| Resolution | Up to 1,440 dpi |
| Cutting Speed | 10 to 150 mm/s |
| Blade Force | 30 to 500 gf |
| Interface | Ethernet (100BASE-TX / 1000BASE-T) |
| Power Consumption | ~185 W (active), ~27 W (sleep) |
| Dimensions (W × D × H) | 1,069 × 617 × 622 mm (42.1 × 24.3 × 24.5 in) |
| Weight | ~62 kg (137 lb) |
| Operating Environment | 20–32 °C, 35–80 % RH |
| (Roland Website) |
In The Box
-
Roland BN2-20A printer/cutter
-
Stand, media holders, take-up unit
-
Power cord
-
Separating blade & knife
-
VersaWorks 7 RIP, FlexiDESIGNER VersaStudio Edition
-
User manuals & utility software
-
Cleaning tools & starter consumables
