Canon imagePROGRAF TA-20 24″ Printer


The Canon imagePROGRAF TA-20  offers fast and flexible printing to maximise ink and media usage

The new Canon imagePROGRAF TA-20 gives you an affordable, efficient solution to printing your CAD, Technical, Poster and office based large format prints. Produce prints up to Size A1, the 24″ TA-20 saves you money by using less ink and being priced affordably to small to medium sized businesses. Increase your productivity and reduce costs by making the most of the borderless printing system on all edges.


Book A Remote Demo
Get More Info

In Stock

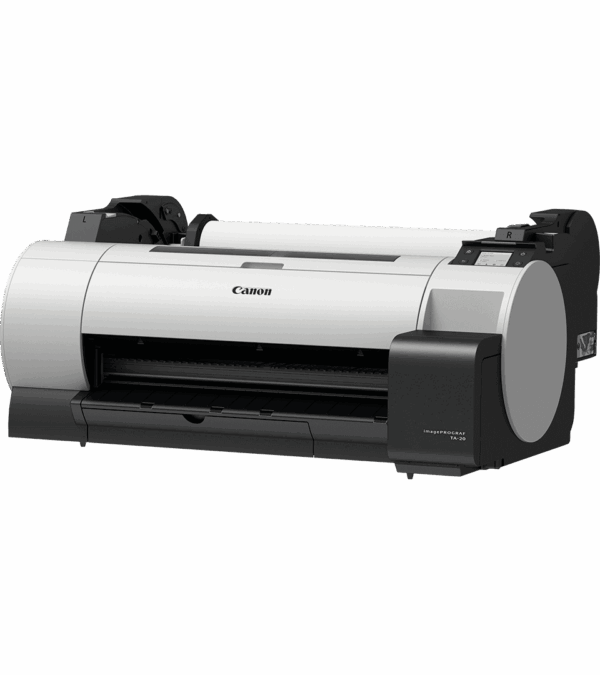

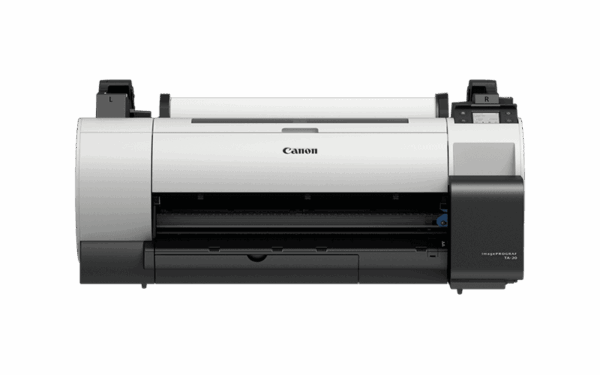

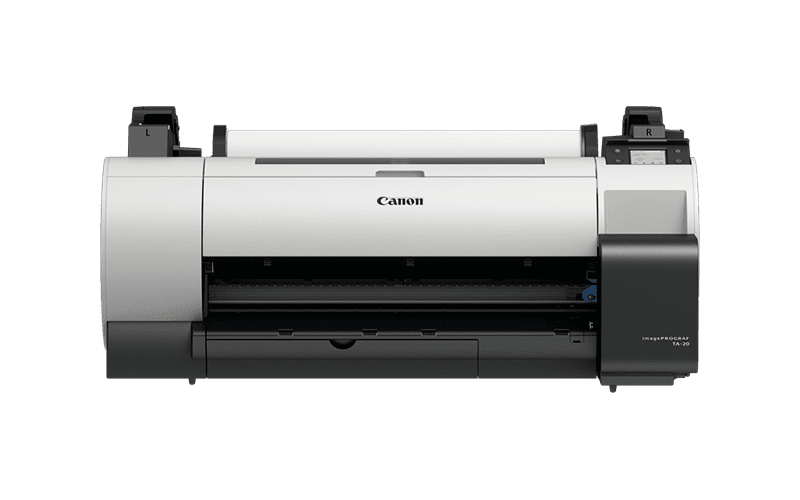

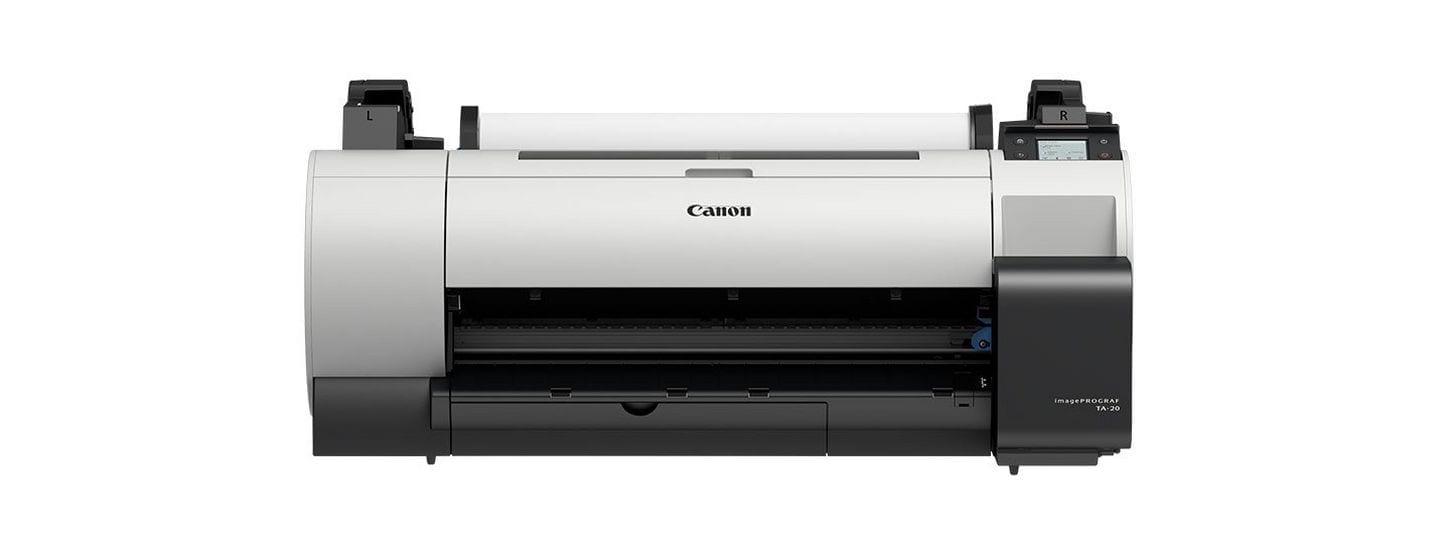

Canon imagePROGRAF TA-20

The Canon imagePROGRAF TA-20 has taken the best qualities from the advanced TX and TM Series, including the core Air Feeding System (AFS) technology, which keeps the paper flat so that the print heads can drop the ink precisely without rubbing against the paper. This means with the Canon imagePROGRAF TA-30 you get a higher quality, more accurate image. What’s more, the internal mechanics have been optimised to reduce operation noise making them perfect for environments where sound needs to be kept to a minimum. And thanks to the compact design, you can even house them next to your desk! An ideal solution for easy office use.

Need an exact replica of technical drawings or architectural renderings maintaining the crisp lines and sharp text? No problem! Want vibrant graphics that wow the client when proofing? Easy! Sales progress Gannt charts to pin on your office wall. Eye-catching, glossy merchandise banners to encourage purchase in-store. Stand-out teaching materials, timetables or ceremony banners for the classroom. It’s all possible. You can even print for outdoor use.

High Print Quality

The Canon imagePROGRAF delivers Innovative imaging technology and precise printing, with powerful colour from LUCIA TD ink

Quiet and compact

Seamlessly fits into any office, with reduced operation noise and full front accessibility

Accurate ink placement

Print sharp lines with an innovative Air Feeding system that keeps paper flat for high accuracy

Strengthened security

Security requirements and settings for secure communication, secure management and secure interface

Ease of use

3’’ inch colour LCD touchscreen panel with ample icons for immediate access

View more info on the Canon website here

View the 36″ Canon imagePROGRAF TA-30 here

Additional information



EAN Number



Black, White



Canon Specification


Printer Type

5 colors 24”/610mm

Print Technology

Canon Bubblejet on Demand 6 colours integrated type
(6 chips per print head x 1 print head)

Print Resolution

2,400 x 1,200 dpi

Number of Nozzles

15,360 nozzles (MBK 5,120 nozzles, Other Colors 2,560 nozzles each)

Line Accuracy

±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only

Nozzle Pitch

1,200dpi (2 lines)

Ink Droplet Size

minimum 5 pl per colour

Ink Capacity

Sales Ink: 55ml
Bundled Starter Ink: 55ml (2 x MBK, 1 x BK,C,M,Y)

Ink Type

Pigment inks – Matte Black, Black, Cyan, Magenta, Yellow

OS Compatability

Microsoft Windows 32 Bit: Vista, 7, 8, 8.1, 10
Microsoft Windows 64 Bit: Windows 7, 8.1, 10,
Windows Server 2008R2, Windows Server
2012/2012R2, Windows Server 2016,
Windows Server 2019
Apple Macintosh: OS X10.10.5~ OS X 10.11,
macOS 10.12~macOS 10.15

Printer Languages

SG Raster (Swift Graphic Raster),HP-GL/2, HP RTL,
JPEG (Ver. JFIF1.02)

Standard Interfaces

USB B Port: Hi-Speed
Ethernet: IEEE 802.3 10base- T/IEEE 802.3u 100base-TX/IEEE 802.3ab 1000base-T/IEEE 802.3x Full Duplex
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
* Please refer to user manual how to activate /deactivate the wireless LAN


Standard Memory

2 GB

Hard Drive


Media Handling

Media Feed and Output

Roll Paper: One Roll, Upper-loading, Front Output
Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever)

Media Width

Roll paper: 203.2 -610 mm
Cut sheet: 210 – 431.8 mm

Media Thickness

Roll/Cut: 0.07 – 0.8 mm

Minimum Printable Length

Roll paper: 203.2 mm
Cut sheet: 279.4 mm

Maximum Printable Length

Roll paper: 18 m
(Varies according to the OS and application)
Cut sheet: 594mm

Maximum Media Roll Diameter

150 mm or less

Media Core Size

Internal diameter of roll core: 2″/3″(option)

Margins Recommended area

Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm

Margins Printable area

Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 20 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Media Feed Capacity

Manually switchable by user

Media Take-up roll unit


Borderless Printing Width (Roll Only)

(Printable) 203.2-610mm
*Roll paper only * No size restriction

Maximum number of delivered prints

Standard position: 1 sheet

Dimensions and Weight

Physical Dimensions WxDxH (mm) and Weight (Kg)

982 x 748 x 438 mm
37 kg (including Roll Holder Set, excluding ink and print head)

Packaged Dimensions WxDxH (mm) and Weight (Kg)

Printer (Main unit with pallet)  1147 x 874 x 542 mm
49 kg

Power and Operating Requirements

Power Supply

AC 100-240V (50-60Hz)

Power Consumption

Operation: 52 W or less
Sleep mode: 3.6W or less
Default setting for the time to enter the Sleep mode: approx. 5 mins
Power off: 0.3 W or less

Operating Environment

Temperature: 15~30oC, Humidity: 10~80% RH (no dew condensation)

Accoustic Noise (Power/Pressure)

Operation: 42 dB (A) (Plain paper, line drawing, standard mode)
Standby: 35 dB (A) or less
Operation: 5.8 Bels (Plain paper, line drawing, standard
mode) (Measured on ISO 7779 standard and described
based on ISO9296 standard)


Europe: CE mark, Russia: EAC,



What’s Included

What’s in the Box?

Printer, 1 print head, Power Cabel, 1 set of starter ink tanks, Set up guide, Quick Guide, Safety/Standard Environment leaflet, User Software CD-ROM (Win),
EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet

Software Included

imagePROGRAF TA- Unified Printer Driver,
Other software available as Download from Web.


Optional Items

2/3″ Roll Holder: RH2-28


User Replaceable Items

Ink Tank: PFl-030 (55ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
