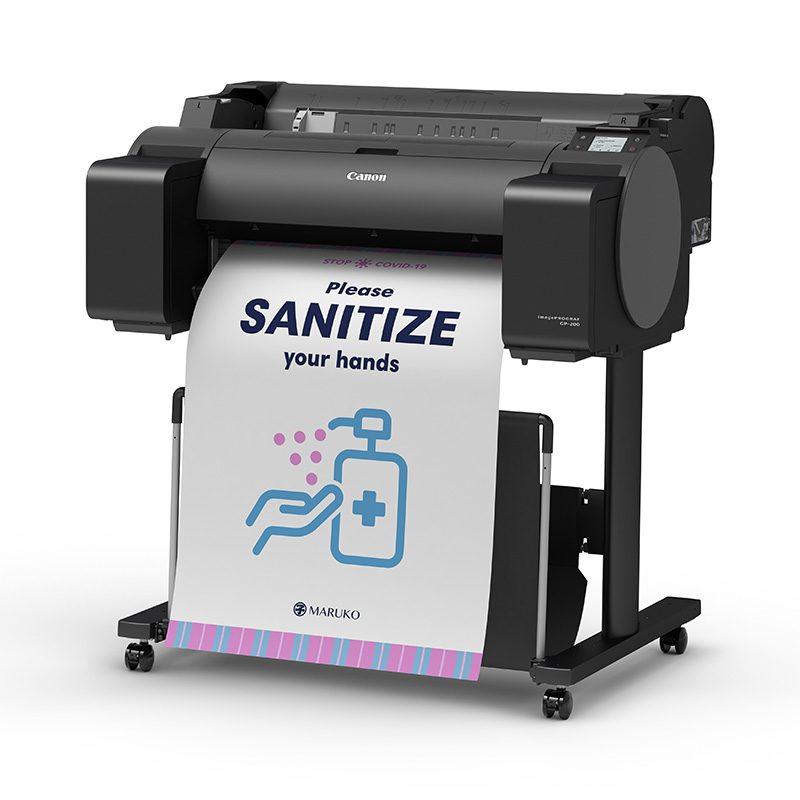

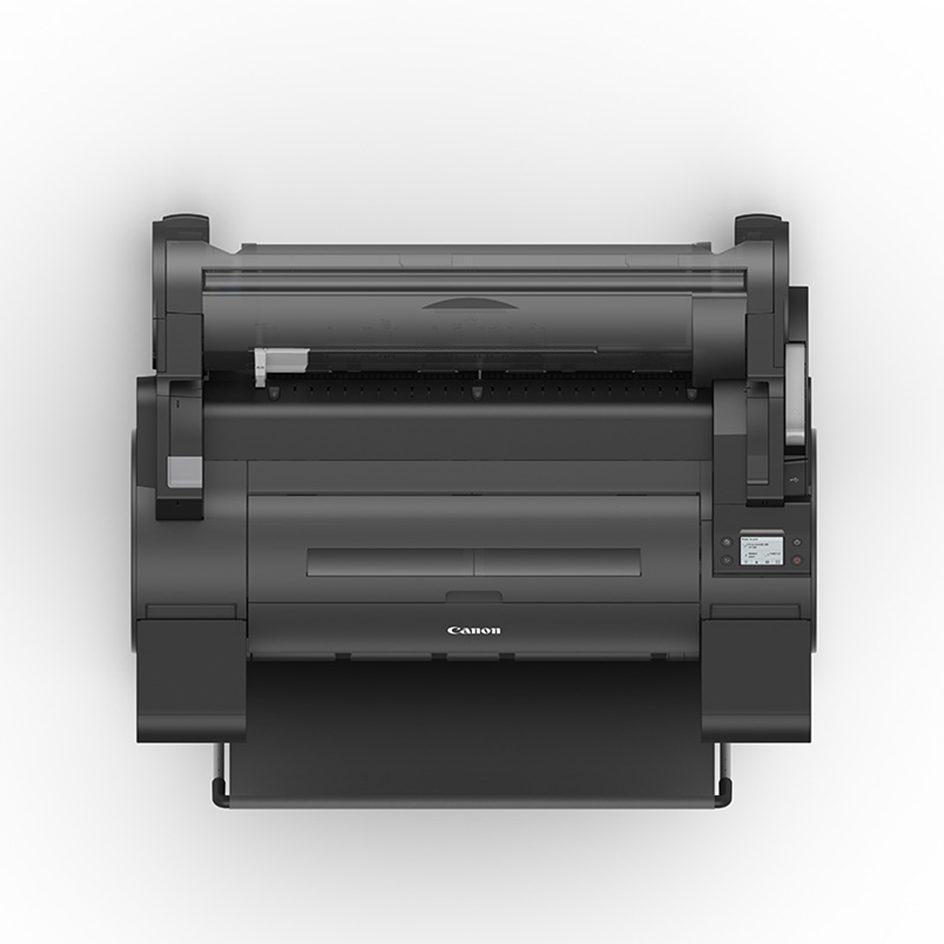

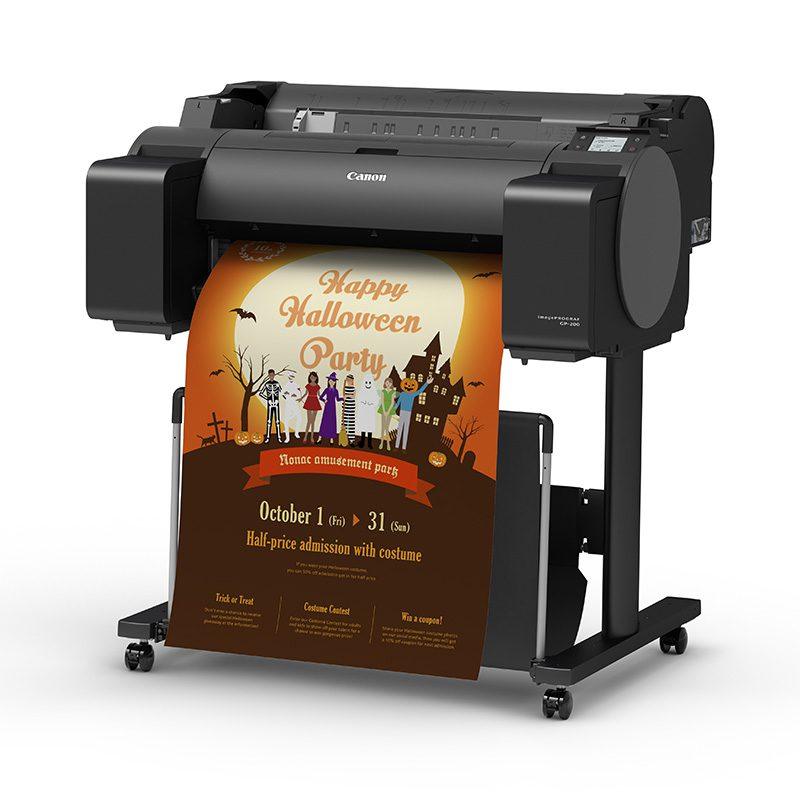

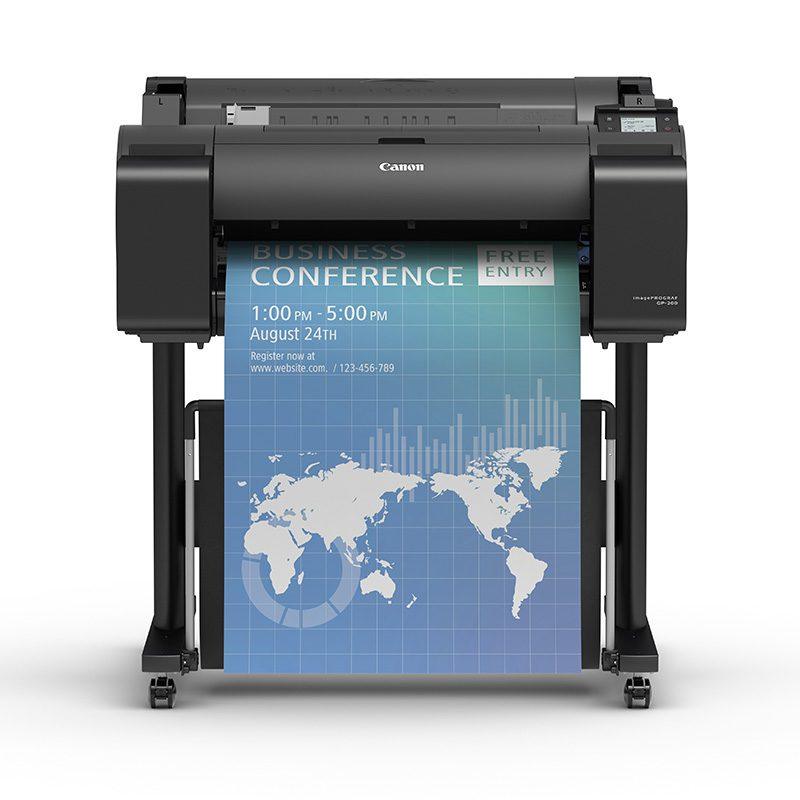

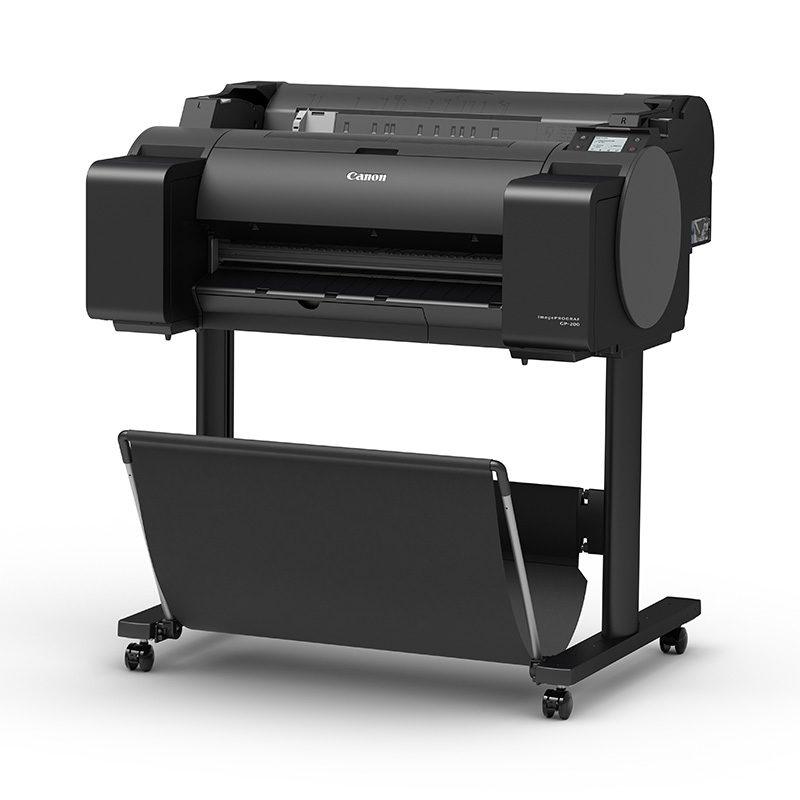

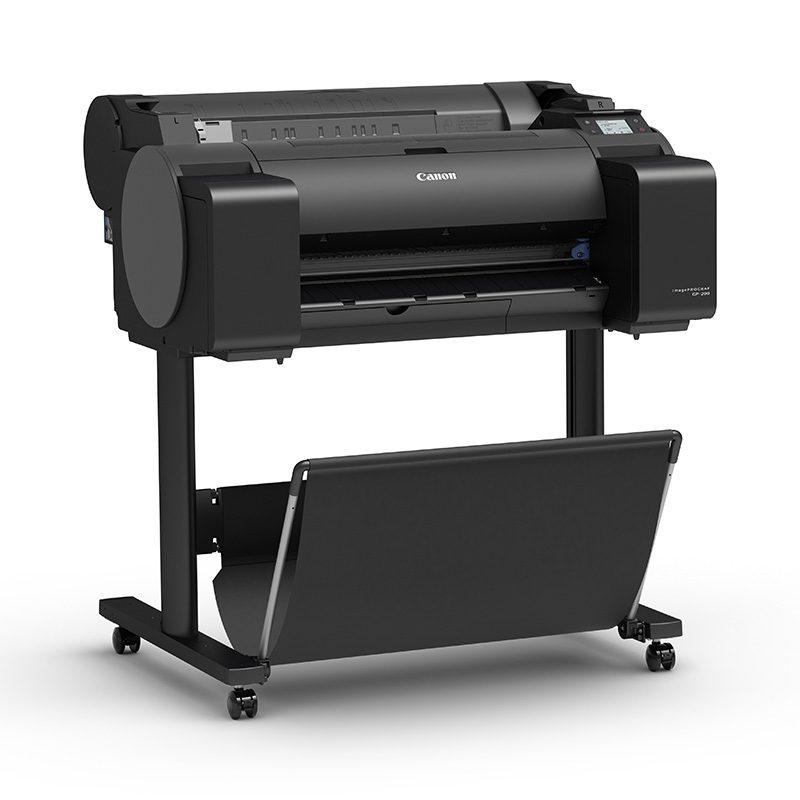

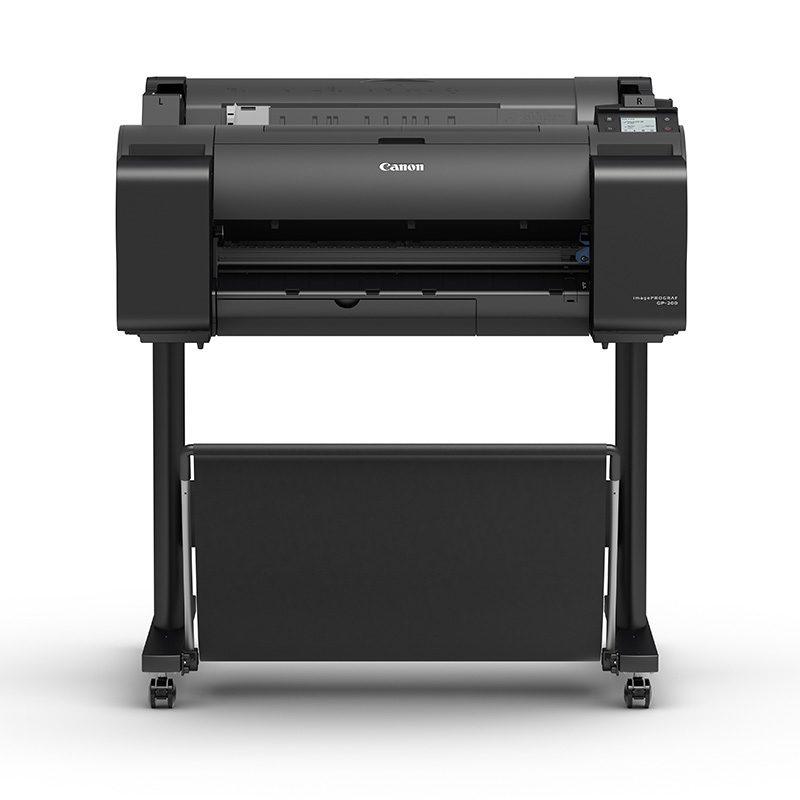

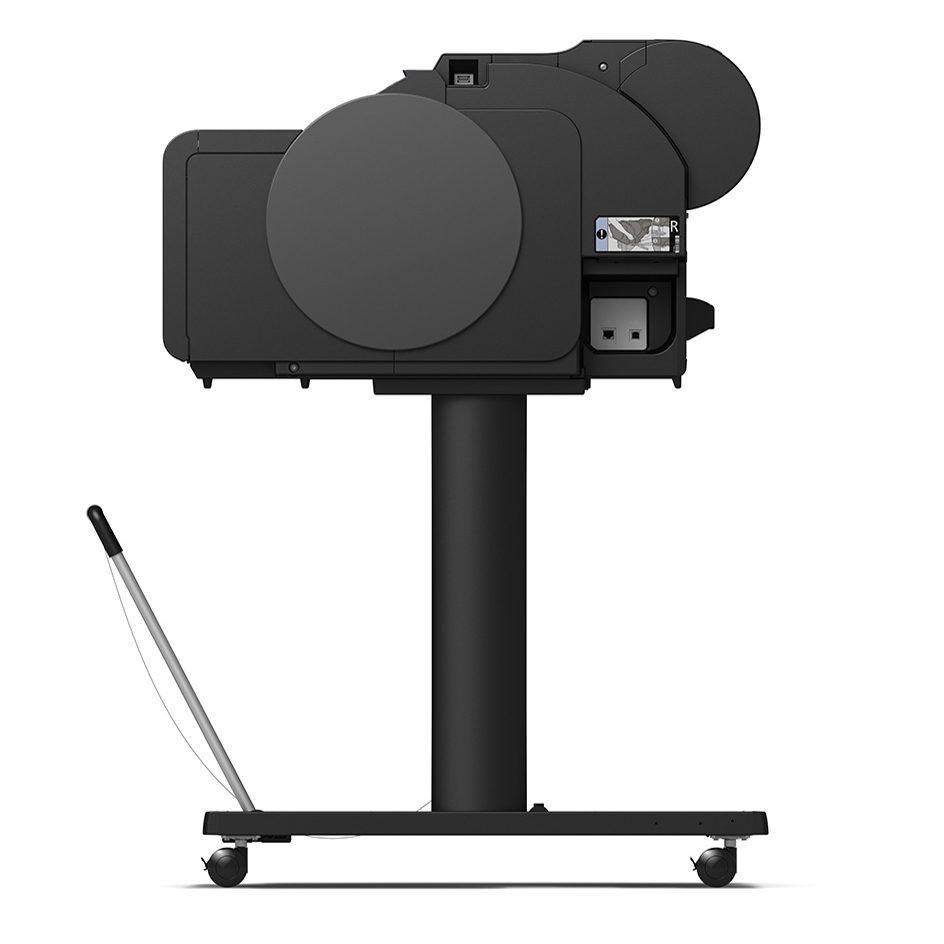

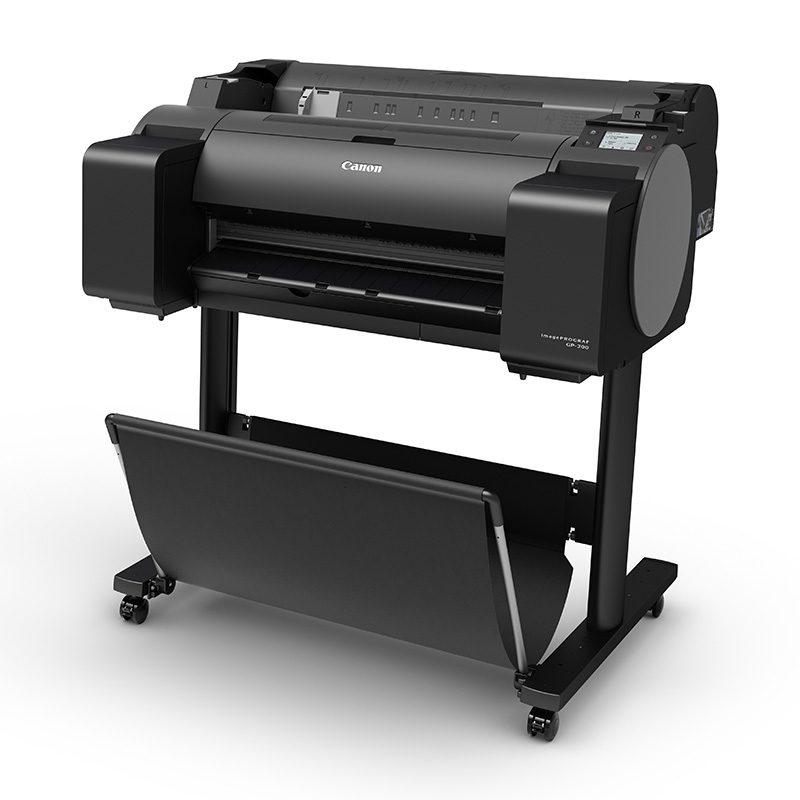

Canon imagePROGRAF GP-200 24″ Printer

Sale!

£1,395.00 exc VAT £1,674.00 inc VAT

Create premium-quality, eye-catching posters with a 6-colour, 24-inch large format printer, featuring the newly developed fluorescent pink ink

Maximise your marketing creativity with eye-catching designs and vivid colour posters using the fluorescent pink ink. Easy poster-creation software is available with new designs for high-impact poster creation.

Vivid colours

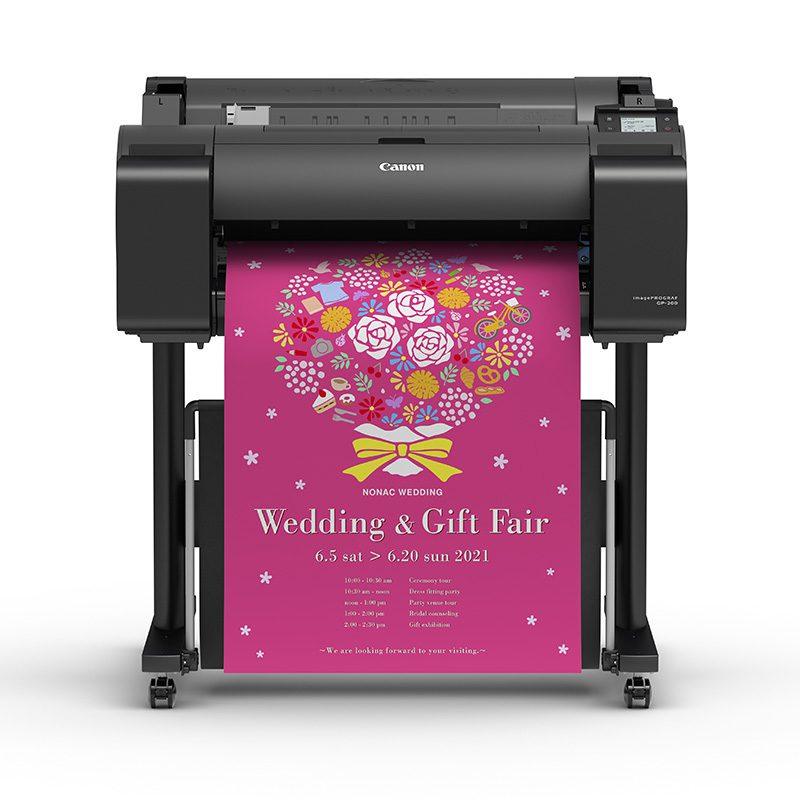

Print eye-catching posters every time with advanced spot colour accuracy and fluorescent colour expression using newly developed fluorescent pink ink.

Easy poster creation

Create attractive and impactful marketing materials with Poster Artist 3.4, featuring new templates and built-in stock photo services, helping you produce stylish posters for any purpose.

Professional finish

High-precision paper edge detection supports free-size borderless printing for all paper roll sizes, making it easy to create borderless posters without any cutting.

In Stock

SKU: CANGP-200

Description

Additional information

Brand

imagePROGRAF

Manufacturer

Canon

Specification

Printer Technology

  • Printer Type
    6 Colour 24″
  • Print Technology
    Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
  • Print Resolution
    2,400 x 1,200 dpi
  • Number of Nozzles
    Total: 15,360 nozzles MBK, BK, C, M, Y, FP: 2,560 nozzles each
  • Line Accuracy
    ±0.1% or less
    User adjustments are necessary. The printing environment and media must match those used for the adjustments.
    CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
  • Nozzle Pitch
    1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
  • Ink Droplet Size
    minimum 5 pl per colour
  • Ink Capacity
    Bundled Starter Ink : 90 ml (MBK, BK, C, M, Y, FP)
    Sales Ink : 130 ml, 300 ml
  • Ink Type
    Pigment inks : 6 colour MBK, BK, C, M, Y, FP
  • OS Compatibility
    Microsoft Windows 32 Bit : 7, 8.1, 10
    Microsoft Windows 64 Bit : 7, 8.1, 10, Windows Server 2008R2, 2012, 2012R2, 2016, 2019
    Apple Macintosh : macOS 10.13.6 – macOS 11
  • Printer Languages
    PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
  • Standard Interfaces
    USB A Port : USB Memory Direct Print for JPEG/PDF files
    USB B Port : Built-in Hi-Speed USB
    Ethernet : IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / Auto-Negotiation, IEEE 802.3x Full Duplex
    Wireless LAN : IEEE802.11n/IEEE802.11g/IEEE802.11b
    *Please refer to user manual how to activate/deactivate the wireless LAN

Memory

  • Standard Memory
    2GB
    Expansion slot : No
  • Hard Drive
    500GB

Print Speed

  • Poster
    Plain Paper (A1):
    0:25 (Fast)
    0:44 (Standard)Heavy coated Paper (A1):
    0:55 (Fast)
    1:22 (Standard)Glossy photo Paper (A1):
    3:28 (Standard)
    5:18 (High Quality)

Media Handling

  • Media Feed and Output
    Roll Paper : One Roll, Upper-loading, Front Output
    Added Roll Paper : N/A
    Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
  • Media Width
    Roll paper : 203.2 mm – 610 mm
    Cut sheet : 203.2 mm – 610 mm
  • Media Thickness
    Roll/Cut : 0.07 mm – 0.8 mm
  • Minimum Printable Length
    Roll paper : 203.2 mm
    Cut sheet : 279.4 mm
  • Maximum Printable Length
    Roll paper : 18 m (Varies according to the OS and application)
    Cut sheet : 1.6 m
  • Maximum Media Roll Diameter
    150 mm
  • Media Core Size
    Internal diameter of roll core : 2″/3″
  • Margins Recommended Area
    Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
    Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
  • Margins Printable Area
    Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
    Roll paper (borderless print) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm
    Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
  • Media Feed Capacity
    Roll Paper : 1 roll
    Cut Sheet : 1 sheet
  • Media Take-Up Roll Unit
    N/A
  • Borderless Printing Width (Roll Only)
    [Recommended] 515 mm (JIS B2), 594 mm (ISO A1), 10″, 14″, 17″, 24″
    [Printable] 257 mm (JIS B4), 297 mm (ISO A3), 329 mm (ISO A3+), 420 mm (ISO A2), 8″, 12″, 15″, 16″, 18”, 20″, 22”, 300 mm, 500 mm, 600 mm, and custom roll width (203.2 – 610 mm)
  • Maximum Number of Delivered Prints
    Standard position of the basket : 1 sheet

Power and Operating Requirements

  • Power Supply
    AC 100-240V (50-60Hz)
  • Power Consumption
    Operation : 71 W or less
    Sleep mode : 2.1 W or less
    Default setting for the time to enter the Sleep mode : Approx. 5 Minutes
    Power off : 0.3 W or less
  • Operating Environment
    Temperature : 15~30℃, Humidity : 10~80% RH (no dew condensation)
  • Accoustic Noise (Power/Pressure)
    Pressure
    Operation : 49 dB (A) (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
    Standby : 35 dB (A) or less
    Power
    Operation : 6.7 Bels (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
  • Regulations
    Europe : CE mark
    Other Countries : CB certfication
  • Environment Certificates
    TUV, CB

Dimensions and Weight

  • Physical Dimensions and Weight
    982 x 870 x 1060 mm (Basket Open)
    982 x 757 x 1060 mm (Basket Closed)
    50 kg (Main Unit + Stand + Basket, including Roll Holder Set, excluding ink and print head)
  • Packaged Dimensions and Weight
    Printer (Main unit with pallet) : 1152 x 913 x 705 mm
    69 kg
    Stand + Basket : 1055 x 824 x 268 mm
    16 kg

Options

  • Optional Items
    2/3″ Roll Holder : RH2-28
    Printer Stand : SD-24

Consumables

  • User Replaceable Items
    Ink Tank : PFl-120 (130ml), PFl-320 (300ml)
    Print Head : PF-07
    Cutter Blade : CT-08
    Maintenance Cartridge : MC-31

Whats in the box

What’s in the Box?

Printer, 1 print head, 1 roll holder (spool), 3 inch paper core attachment, Power Cable, 1 set of starter ink tanks, Set up guide, Printer Stand Setup Guide, Quick Guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), PosterArtist Lite CD-ROM, EU Biocide Sheet, Important Information Sheet

Software Included

imagePROGRAF GP Printer Driver and PosterArtist Lite
Other software is available as a Download from the Web.
